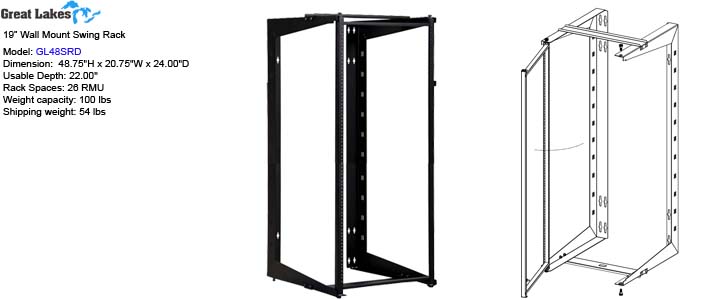

Wall Mount Swing RackGL48SRD for 19-inch Rack Mount Equipments Great Lakes Cases & Cabinet Co. RMS-xxx Links:
Catalogue - Great Lakes 19" Wall Mount Swing Racks
Drawing - GL24SRD / GL36SRD / GL48SRD
Instruction - GL24SRD / GL36SRD / GL48SRD
Spec - GL24SRD / GL36SRD / GL48SRD
Specification:
Reference:
# x Made Model Unit Height Depth Support Thread Note 1 GL24SR 12U 23.75" 18.00" 100 lbs #12-24 xxx 2 GL36SR 19U 36.00" 18.00" 100 lbs #12-24 xxx 3 GL48SR 26U 48.75" 18.00" 100 lbs #12-24 xxx 4 GL24SRD 12U 23.75" 24.00" 100 lbs #10-32 xxx 5 GL36SRD 19U 36.00" 24.00" 100 lbs #10-32 xxx 6 GL48SRD 26U 48.75" 24.00" 100 lbs #10-32 xxx 7 x xxx xxx xxx xxx xxx xxx xxx xxx 8 x xxx xxx xxx xxx xxx xxx xxx xxx 9 x xxx xxx xxx xxx xxx xxx xxx xxx 10 x xxx xxx xxx xxx xxx xxx xxx xxx 11 x xxx xxx xxx xxx xxx xxx xxx xxx 12 x xxx xxx xxx xxx xxx xxx xxx xxx x x xxx xxx xxx xxx xxx xxx xxx xxx Note(s): not all items are available, subject to inventory 25 25 70 120 40 40 40 40 60 240
