For reference only, photos / specs may not reflect actual content.

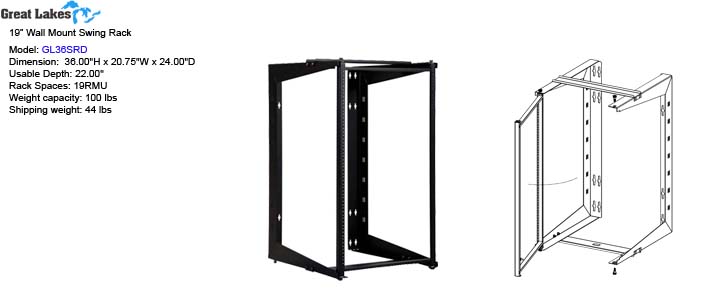

Wall Mount Swing Rack
GL36SRD for 19-inch Rack Mount Equipments
Great Lakes Cases & Cabinet Co.
 RMS-xxx

Links:

Features:
  • The Swing Racks will ship unassembled
  • The Swing Racks shall have 22.00" of usable depth
  • Rack mounting shall be tapped #10-32 on the front face
  • A package of #10-32 hardware shall be included
  • Weight capacity shall be 100 lbs.
  • Multiple mounting provision for cable management cinch strap or wire ties
  • The rack mount section will be able to swing a full 180 degrees
  • Release swing rack via Allen wrench/Hex key
  • Wall mounting shall be done on 16" on center using keyway holes
  • Swing Racks shall be painted using durable black powder coat paint

Specification:

  • Dimension: 36.00"H x 20.75"W x 24.00"D
  • Usable Depth: 22.00"
  • Rack Spaces: 19 RMU
  • Weight capacity: 100 lbs
  • Shipping weight: 44 lbs

Reference:

# x Made Model Unit Height Depth Support Thread Note
1 GL24SR 12U 23.75" 18.00" 100 lbs #12-24 xxx
2 GL36SR 19U 36.00" 18.00" 100 lbs #12-24 xxx
3 GL48SR 26U 48.75" 18.00" 100 lbs #12-24 xxx
4 GL24SRD 12U 23.75" 24.00" 100 lbs #10-32 xxx
5 GL36SRD 19U 36.00" 24.00" 100 lbs #10-32 xxx
6 GL48SRD 26U 48.75" 24.00" 100 lbs #10-32 xxx
7 x xxx xxx xxx xxx xxx xxx xxx xxx
8 x xxx xxx xxx xxx xxx xxx xxx xxx
9 x xxx xxx xxx xxx xxx xxx xxx xxx
10 x xxx xxx xxx xxx xxx xxx xxx xxx
11 x xxx xxx xxx xxx xxx xxx xxx xxx
12 x xxx xxx xxx xxx xxx xxx xxx xxx
x x xxx xxx xxx xxx xxx xxx xxx xxx
Note(s):
  • not all items are available, subject to inventory
