Rack Mount Cabinets
DAMAC Axis Series
RMC-CCOxxx

Links:

Popular Pre-Configured Models:

P/N & Drawing

WxHxD (inch)

 Mnt. / Rails

Door (w/ Lock)

Hinge
F / R

 Key
Latch		 Sides Top

Color

Wt / lb

Front

Rear
1 CCO48EBB1SBSV-3 24U 24x48x30 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 125
2 CCO48EBV1SBSV-3 24U 24x48x30 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 125
3 CCO48EDB1SBSV-3 24U 24x48x36 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 140
4 CCO48EDV1SBSV-3 24U 24x48x36 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 140
5 CCO48EPB1SBSV-3 24U 24x48x40 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 150
6 CCO48EPV1SBSV-3 24U 24x48x40 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 150
7 CCO78EBB1SBSV-3 42U 24x78x30 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 215
8 CCO78EBV1SBSV-3 42U 24x78x30 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 215
9 CCO78EDB1SBSV-3 42U 24x78x36 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 230
10 CCO78EDV1SBSV-3 42U 24x78x36 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 230
11 CCO78EPB1SBSV-3 42U 24x78x40 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 250
12 CCO78EPV1SBSV-3 42U 24x78x40 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 250
13 CCO78EQB1SBSV-3 42U 24x78x42 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 255
14 CCO78EQV1SBSV-3 42U 24x78x42 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 255
15 CCO84EBB1SBSV-3 45U 24x84x30 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 230
16 CCO84EBV1SBSV-3 45U 24x84x30 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 230
17 CCO84EDB1SBSV-3 45U 24x84x36 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 260
18 CCO84EDV1SBSV-3 45U 24x84x36 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 260
19 CCO84EPB1SBSV-3 45U 24x84x40 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 280
20 CCO84EPV1SBSV-3 45U 24x84x40 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 280
21 CCO84EQB1SBSV-3 45U 24x84x42 19" M6 C-Nut Mesh Mesh R / R Alike Solid x2 V Black 285
22 CCO84EQV1SBSV-3 45U 24x84x42 19" M6 C-Nut Vent Plexi Mesh R / R Alike Solid x2 V Black 285
x --- --- --- --- --- --- --- --- --- --- --- ---

Note:
> C-Nut - Cage Nut
> F / R - Front / Rear; R - Right; L - Left
> V - Vented

Introductions:

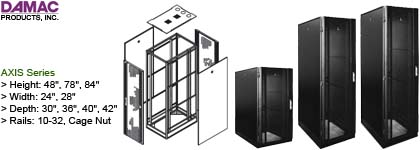

The Axis Cabinet System is DAMAC's most popular and versatile single compartment data cabinet. The patented modular design makes it an ideal solution for 19" rack-mounted equipment. Constructed of tubular steel, this robust design provides more interior room for equipment and cooling compared to a traditional sheet metal design. Available in several configurations, the Axis Series embraces superior strength and reliability in a high value equipment-ready design.

Model Sizes:

  • Height: 48", 78", 84"
  • Width: 24", 28"
  • Depth: 30", 36", 40", 42"
  • Rails: 10-32, Cage Nut

Cabinet Includes:

  • (1) fully welded four-post frame

  • (4) mounting rails, tapped or cage-nut

  • (2) locking solid side panel (optional)

  • (1) locking mesh front door (optional)

  • (1) locking mesh rear door (optional)

  • (1) vented top panel (optional)

  • (4) leveling feet

  • (4) seismic floor mounting gussets

  • (1) bag of 30pc mounting hardware

Specifications:

  • Fully Welded Construction: 2000 lb. static wt. / 1000 lb. rackable
  • Two sets of mounting rails w/ EIA spacing: 5/8 x 5/8 x 1/2
  • 19" or 23" rack-mount equipment, 24U - 45U
  • Meets Seismic Zone 4 requirements
  • Reinforced doors, removable w/ locks and security hinges
  • Doors exceed active equipment req. for air-flow, hot/cold aisle ready
  • Locking/removable flush side panels
  • Flush top panels w/ cable knock-outs, removable
  • Open bottom for raised floor access and ventilation
  • Seismic floor mounting plates w/ levelers, casters optional
  • Zero clearance coupling, 24"W model, width of standard floor tile
  • Integrated unistrut for rail free mounting of accessories and power
  • Textured epoxy powder-coat finish
  • Cabinet ships fully assembled
  • Custom configurations are available
  • Fits multiple vendor environments
  • UL Listed

Ordering Code:

Pre-Configured Cabinet options shown with ordering codes. Sample Part #: CCO84EDB1SBSV3
CCO 84 E D B 1 S B S V 3
Frame Doors Sides Top Color
Type Height
RMU		 Width
Rack
Rails		 Depth Front Hinge Key
Latch		 Rear
CCO
Axis		 48" 24U
78" 42U
84" 45U		 B
24" (W)
19" (R)
#10-32
E
24" (W)
19" (R)
Cage Nut
T
28" (W)
19~23"
Cage Nut		 B - 30"
D - 36"
P - 40"
Q - 42" 		B
Mesh
A
Split-Mesh
2pc Door
H
Mesh
w/ Fans
V
Vent Plex
0
None		 1
Front: Right
Rear: Right
2
Front: Right
Rear: Left
3
Front: Left
Rear: Right
4
Front: Left
Rear: Left		 A
 Unalike
C
 Key &
Combo
S
 Alike		 B
Mesh
A
Split-Mesh
2pc Door
H
Mesh
w/ Fans
V
Vent Plex
0
None		 S
 Solid
Pair
C
 Solid
Pair
0
 None		 E
 Vertical
Air Duct
F
 2 Fan
R
 4 Fan
S
 Soldi
V
 Vented
0
 None		 1
 Putty
2
 Blue
3
 Black
4
 Gray
5
 White
6
 Dark Gray
