For reference only, photos / specs may not reflect actual content.

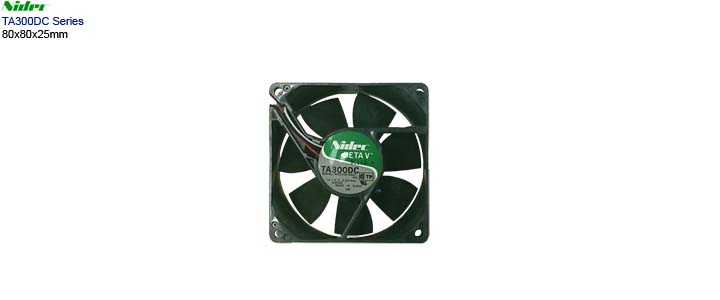

Axial Flow Fan
Nidec BETA V
80x80x25mm TA300DC Series
FN-8025-xxx

Link(s):

Option(s):

#

Make & P/N #

 DC Amp Bearing RPM CFM dBA Note
1 L34681 12V 0.07 NBR Bearing 1850 23.00 17.70 xxx
2 L34682 24V 0.05 NBR Bearing 1850 23.00 17.70 xxx
3 M33414 12V 0.11 Ball Bearing 2050 25.00 22.50 xxx
4 M33415 24V 0.09 Ball Bearing 2050 25.00 22.50 xxx
5 L34683 12V 0.08 NBR Bearing 2050 26.00 21.80 xxx
6 L34684 24V 0.06 NBR Bearing 2050 26.00 21.80 xxx
7 M33412 12V 0.15 Ball Bearing 2400 30.00 24.40 xxx
8 M33413 24V 0.10 Ball Bearing 2400 30.00 24.40 xxx
9 L34685 12V 0.11 NBR Bearing 2400 31.00 26.10 xxx
10 L34686 24V 0.07 NBR Bearing 2400 31.00 26.10 xxx
11 M33409 12V 0.21 Ball Bearing 2900 35.00 31.70 xxx
12 M33411 24V 0.13 Ball Bearing 2900 35.00 31.70 xxx
13 L34687 12V 0.13 NBR Bearing 2800 37.00 31.10 xxx
14 L34688 24V 0.08 NBR Bearing 2800 37.00 31.10 xxx
15 L34689 12V 0.20 NBR Bearing 3250 41.00 34.90 xxx
16 L34690 24V 0.11 NBR Bearing 3250 41.00 34.90 xxx
17 M33406 12V 0.29 Ball Bearing 3400 43.00 35.80 xxx
18 M33407 24V 0.18 Ball Bearing 3400 43.00 35.80 xxx
x xxx xxx xxx xxx xxx xxx xxx xxx

Note:
