Duct

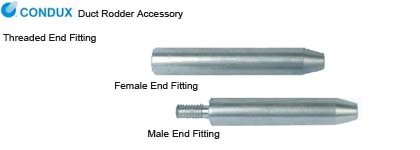

Rodder Threaded End Fitting:
Use as a replacement to the factory installed end fittings
if the end fitting breaks off or if the duct rod breaks
close to the end or the rod. Installation instructions are
included with the end fitting. Epoxy is required for
installation and is ordered separately.
|
Rod Dia. inch (mm) |
3/16 (5) |
1/4
(6) |
5/16
(8) |
7/16
(11) |
9/16
(13) |
|
USC
Thread |
#12-24 |
5/16-18 |
3/8-16 |
3/8-16 |
3/4-10 |
|
Male |
08033420 |
08033440 |
08036307 |
08036303 |
08036005 |
|
Female |
- |
- |
08036306 |
08036304 |
08036006 |
|
Metric
Thread |
M5 |
M8 |
M12 |
M12 |
M12 |
|
Male |
08033487 |
08033486 |
08036318 |
08036319 |
08036316 |
|
Female |
- |
- |
08036317 |
08036314 |
08036315 |
