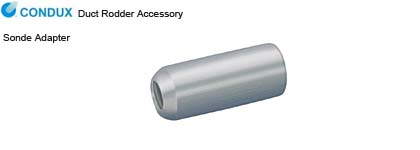

Sonde Adapter:
Couples a locating sonde or other device with an M10 male
thread to the male end fitting of the duct rod. Specify
sonde thread and rodder.
|
Rod Dia. inch (mm) |
3/16 (5)* |
1/4
(6)* |
5/16
(8) |
7/16
(11) |
9/16
(13) |
|
USC
Thread |
#12-24 |
5/16-18 |
3/8-16 |
3/8-16 |
3/4-10 |
|
Sonde
Adapter |
- |
08036500 |
08036503 |
08036503 |
08036504 |
|
Metric
Thread |
M5 |
M8 |
M12 |
M12 |
M12 |
|
Sonde
Adapter |
- |
08036505 |
08036501 |
08036501 |
08036501 |
|
Note:
Custom adapters available up request. |
