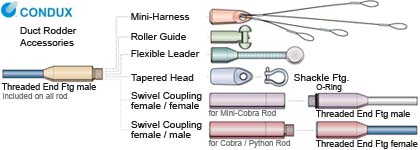

Roller Guide:
Screws
onto the threaded end fitting to allow for easy wire attachment
when pulling wire into conduit.
US Rod Dia.
inch |
USC
Thread |
P/N |
Duct Range I.D.
inch |
|
3/16 |
#12-24 |
08037430 |
0.50 -
1.25 |
|
1/4 |
5/16-18 |
08037440 |
1.00 -
2.50 |
|
5/16 |
3/8-16 |
08037460 |
1.50 -
6.00 |
|
5/16 |
3/8-16 |
08037401 |
2.50 -
6.00 |
|
7/16 |
3/8-16 |
08037401 |
2.50 -
6.00 |
|
9/16 |
3/4-10 |
08037400 |
3.00 -
8.00 |
Metric
Rod Dia.
(mm) |
Metric
Thread |
P/N |
Duct Range I.D.
(mm) |
|
(5) |
M5 |
08037428 |
12.7 - 32 |
|
(6) |
M8 |
08037450 |
25 - 63 |
|
(8) |
M12 |
08037405 |
63 - 152 |
|
(11) |
M12 |
08037405 |
63 - 152 |
|
(13) |
M12 |
08037405 |
76 - 203 |
|
Note: |
