Duct

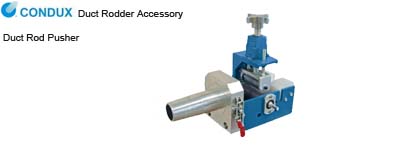

Rod Pusher:
The Condux Rod Pusher, which has bee designed for the
purpose of installing duct rod into conduit. The conduit
must previously have been installed underground or overhead
to receive the duct rod and must be of sufficient length on
exit to be received by the machine. The duct rod is
continuously pushed into the conduit by a roller drive
powered by a cordless, corded or pneumatic drill. A clamp
located in front of the entrance to the unit holds the
conduit mechanically to prevent it from moving axially.
|
Split
Threaded Adapter Part No. |
Duct
Size (in) |
Duct
I.D. Range |
|
08201108 |
0.75 |
0.83 -
1.00 |
|
08201110 |
1 |
0.90 -
1.13 |
|
08201112 |
1.25 |
1.25 -
1.40 |
|
08201115 |
1.5 |
1.40 -
1.65 |
|
08201020 |
2 |
1.91 -
2.10 |
|
08201025 |
2.5 |
2.29 -
2.47 |
|
08201030 |
3 |
2.83 -
3.10 |
|
08201041 |
4 |
3.80 -
4.06 |
|
08201051 |
5 |
4.71 -
5.08 |
|
08201061 |
6 |
5.61 -
6.10 |
|
Note: |
Reference:
