IDEAL VDV Tester	# 33-856	VDV 33-856 Brochure
		VDV 33-856 Instructions
		Residential Coax Application Guide
		Multi-Media Installation Guide
Optional Tester Kit	# LA-4157	Security Kit – 8 position modular adapter, and eight RJ-45 to alligator clip lead sets
	# LA-4158	LinkMaster™ PRO UTP Remotes 2 through 8 (Data only)
	# LA-4173	BNC Accessory Kit
	# LA-4235	LinkMaster™ PRO XL Remotes 2 through 8 (Voice & Data)
	# LA-4868	Small Black Soft Carrying Case
	# LA-4868	Large Black Soft Carrying Case

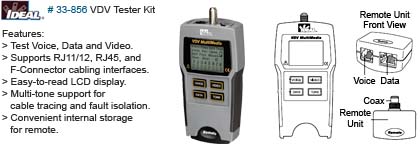

Features:

Designed to Support a Full Range of Voice, Data and Video (VDV) Applications
The VDV MultiMedia Cable Tester is an easy-to-use cable testing and verification device that can quickly test all wiring requirements found throughout today’s residential and commercial environments. Voice – tests 3-pair USOC and 6-position RJ11/12 jacks for voice cable testing
Data – tests both shielded and unshielded cable testing to T568A/B (RJ45) Video – tests coax cable for opens and shorts with F-Connector interface.

Instantly Verify Wiring Integrity
The VDV MultiMedia Tester makes it a snap to quickly verify wiring integrity and assure proper terminations for diverse types of networks.
Easy-to-use push button to select between Voice, Data, and Video/Security testing functions Tests for opens, shorts, miswires, reversals
and split pairs Indicates correct wiremap to T568A/B standards Easy to read LCD display with “PASS” or “Miswire” indicator for each test
Identifies voltages on cables Tone generator supports 4 different tones making fault isolation easier Integrated remote unit to make storage
and carrying easier Can support additional optional remotes making it efficient for one person testing.

Specifications

• Cable Types:
  Phone Cable (3 pair USOC and 6 position RJ11/12)
  Data Cable shielded or unshielded, CAT-6, CAT-5E, CAT-5, CAT-4, CAT-3
  Coax Cable - 100 ohms maximum DC resistance, center conductor plus shield (F-Connector)
• Minimum Cable Length
  for testing of split pairs: 1 Meter (3 feet)
• Battery Life:
  9V Alkaline battery (typical times for the full capacity of the battery used continuously in one of the following modes)
  Standby: 2.5 years
  Cable Testing: 150 hours
  Tone Generator: 250 hours
• Environmental:
  Operating Temperature: 0° to 50° C (32° to 122° F)
  Storage Temperature: -10° to 60° C (14° to 140° F)
  Humidity: 10% to 90%, non-condensing
• Physical Dimensions:
  Size: 13.2 x 7.3 x 4.1 cm (5.2 x 2.9 x 1.6 inches)
  Weight: 242 grams (8.5 oz.) with battery and remote
