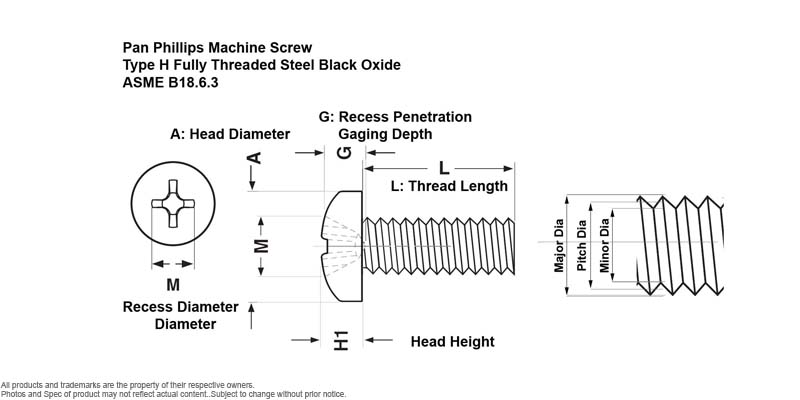

Machine Screw Pan Phillips (Type H) Fully Threaded Steel Black Oxide Imperial
# x Made Item # Item Size LBS/UM Standard Note
1 0202MPPB 2-56X1/8 0.36 ASME B18.6.3 & SAE J82 xxx
2 0203MPPB 2-56X3/16 0.46 ASME B18.6.3 & SAE J82 xxx
3 0204MPPB 2-56X1/4 0.52 ASME B18.6.3 & SAE J82 xxx
4 0205MPPB 2-56X5/16 0.58 ASME B18.6.3 & SAE J82 xxx
5 0206MPPB 2-56X3/8 0.63 ASME B18.6.3 & SAE J82 xxx
6 0207MPPB 2-56X7/16 0.72 ASME B18.6.3 & SAE J82 xxx
7 0208MPPB 2-56X1/2 0.82 ASME B18.6.3 & SAE J82 xxx
8 0210MPPB 2-56X5/8 0.93 ASME B18.6.3 & SAE J82 xxx
9 0212MPPB 2-56X3/4 1.07 ASME B18.6.3 & SAE J82 xxx
10 0304MPPB 3-48X1/4 0.70 ASME B18.6.3 & SAE J82 xxx
11 0305MPPB 3-48X5/16 0.80 ASME B18.6.3 & SAE J82 xxx
12 0306MPPB 3-48X3/8 0.94 ASME B18.6.3 & SAE J82 xxx
13 0402MPPB 4-40X1/8 0.77 ASME B18.6.3 & SAE J82 xxx
14 0403MPPB 4-40X3/16 0.84 ASME B18.6.3 & SAE J82 xxx
15 0404MPPB 4-40X1/4 0.92 ASME B18.6.3 & SAE J82 xxx
16 0405MPPB 4-40X5/16 1.09 ASME B18.6.3 & SAE J82 xxx
17 0406MPPB 4-40X3/8 1.23 ASME B18.6.3 & SAE J82 xxx
18 0407MPPB 4-40X7/16 1.36 ASME B18.6.3 & SAE J82 xxx
19 0408MPPB 4-40X1/2 1.45 ASME B18.6.3 & SAE J82 xxx
20 0409MPPB 4-40X9/16 1.63 ASME B18.6.3 & SAE J82 xxx
21 0410MPPB 4-40X5/8 1.73 ASME B18.6.3 & SAE J82 xxx
22 0411MPPB 4-40X11/16 1.80 ASME B18.6.3 & SAE J82 xxx
23 0412MPPB 4-40X3/4 1.87 ASME B18.6.3 & SAE J82 xxx
24 0414MPPB 4-40X7/8 2.17 ASME B18.6.3 & SAE J82 xxx
25 0416MPPB 4-40X1 2.45 ASME B18.6.3 & SAE J82 xxx
26 0420MPPB 4-40X1 1/4 2.83 ASME B18.6.3 & SAE J82 xxx
27 0424MPPB 4-40X1 1/2 3.34 ASME B18.6.3 & SAE J82 xxx
28 0436MPPB 4-40X2 1/4 4.65 ASME B18.6.3 & SAE J82 xxx
29 0503MPPB 5-40X3/16 1.12 ASME B18.6.3 & SAE J82 xxx
30 0504MPPB 5-40X1/4 1.27 ASME B18.6.3 & SAE J82 xxx
31 0505MPPB 5-40X5/16 1.50 ASME B18.6.3 & SAE J82 xxx
32 0506MPPB 5-40X3/8 1.54 ASME B18.6.3 & SAE J82 xxx
33 0508MPPB 5-40X1/2 1.95 ASME B18.6.3 & SAE J82 xxx
34 0510MPPB 5-40X5/8 2.30 ASME B18.6.3 & SAE J82 xxx
35 0512MPPB 5-40X3/4 2.65 ASME B18.6.3 & SAE J82 xxx
36 0516MPPB 5-40X1 3.20 ASME B18.6.3 & SAE J82 xxx
37 0602MPPB 6-32X1/8 1.28 ASME B18.6.3 & SAE J82 xxx
38 0603MPPB 6-32X3/16 1.48 ASME B18.6.3 & SAE J82 xxx
39 0604MPPB 6-32X1/4 1.64 ASME B18.6.3 & SAE J82 xxx
40 0605MPPB 6-32X5/16 1.78 ASME B18.6.3 & SAE J82 xxx
41 0606MPPB 6-32X3/8 1.89 ASME B18.6.3 & SAE J82 xxx
42 0607MPPB 6-32X7/16 2.11 ASME B18.6.3 & SAE J82 xxx
43 0608MPPB 6-32X1/2 2.35 ASME B18.6.3 & SAE J82 xxx
44 0609MPPB 6-32X9/16 2.48 ASME B18.6.3 & SAE J82 xxx
45 0610MPPB 6-32X5/8 2.64 ASME B18.6.3 & SAE J82 xxx
46 0612MPPB 6-32X3/4 3.23 ASME B18.6.3 & SAE J82 xxx
47 0614MPPB 6-32X7/8 3.53 ASME B18.6.3 & SAE J82 xxx
48 0616MPPB 6-32X1 3.67 ASME B18.6.3 & SAE J82 xxx
49 0618MPPB 6-32X1 1/8 4.13 ASME B18.6.3 & SAE J82 xxx
50 0620MPPB 6-32X1 1/4 4.42 ASME B18.6.3 & SAE J82 xxx
51 0622MPPB 6-32X1 3/8 4.94 ASME B18.6.3 & SAE J82 xxx
52 0624MPPB 6-32X1 1/2 5.40 ASME B18.6.3 & SAE J82 xxx
53 0628MPPB 6-32X1 3/4 6.01 ASME B18.6.3 & SAE J82 xxx
54 0632MPPB 6-32X2 6.82 ASME B18.6.3 & SAE J82 xxx
55 0636MPPB 6-32X2 1/4 7.91 ASME B18.6.3 & SAE J82 xxx
56 0644MPPB 6-32X2 3/4 8.76 ASME B18.6.3 & SAE J82 xxx
57 0648MPPB 6-32X3 9.56 ASME B18.6.3 & SAE J82 xxx
58 0652MPPB 6-32X3 1/4 10.80 ASME B18.6.3 & SAE J82 xxx
59 0656MPPB 6-32X3 1/2 12.00 ASME B18.6.3 & SAE J82 xxx
60 0664MPPB 6-32X4 12.40 ASME B18.6.3 & SAE J82 xxx
61 0802MPPB 8-32X1/8 1.86 ASME B18.6.3 & SAE J82 xxx
62 0803MPPB 8-32X3/16 2.36 ASME B18.6.3 & SAE J82 xxx
63 0804MPPB 8-32X1/4 2.65 ASME B18.6.3 & SAE J82 xxx
64 0805MPPB 8-32X5/16 2.96 ASME B18.6.3 & SAE J82 xxx
65 0806MPPB 8-32X3/8 3.28 ASME B18.6.3 & SAE J82 xxx
66 0807MPPB 8-32X7/16 3.49 ASME B18.6.3 & SAE J82 xxx
67 0808MPPB 8-32X1/2 3.66 ASME B18.6.3 & SAE J82 xxx
68 0809MPPB 8-32X9/16 4.13 ASME B18.6.3 & SAE J82 xxx
69 0810MPPB 8-32X5/8 4.40 ASME B18.6.3 & SAE J82 xxx
70 0811MPPB 8-32X11/16 4.67 ASME B18.6.3 & SAE J82 xxx
71 0812MPPB 8-32X3/4 4.94 ASME B18.6.3 & SAE J82 xxx
72 0814MPPB 8-32X7/8 5.34 ASME B18.6.3 & SAE J82 xxx
73 0816MPPB 8-32X1 6.07 ASME B18.6.3 & SAE J82 xxx
74 0818MPPB 8-32X1 1/8 6.33 ASME B18.6.3 & SAE J82 xxx
75 0820MPPB 8-32X1 1/4 7.00 ASME B18.6.3 & SAE J82 xxx
76 0822MPPB 8-32X1 3/8 7.61 ASME B18.6.3 & SAE J82 xxx
77 0824MPPB 8-32X1 1/2 8.21 ASME B18.6.3 & SAE J82 xxx
78 0826MPPB 8-32X1 5/8 8.90 ASME B18.6.3 & SAE J82 xxx
79 0828MPPB 8-32X1 3/4 9.26 ASME B18.6.3 & SAE J82 xxx
80 0832MPPB 8-32X2 10.47 ASME B18.6.3 & SAE J82 xxx
81 0836MPPB 8-32X2 1/4 11.42 ASME B18.6.3 & SAE J82 xxx
82 0840MPPB 8-32X2 1/2 12.55 ASME B18.6.3 & SAE J82 xxx
83 0844MPPB 8-32X2 3/4 13.50 ASME B18.6.3 & SAE J82 xxx
84 0848MPPB 8-32X3 14.96 ASME B18.6.3 & SAE J82 xxx
85 0852MPPB 8-32X3 1/4 15.83 ASME B18.6.3 & SAE J82 xxx
86 0856MPPB 8-32X3 1/2 17.40 ASME B18.6.3 & SAE J82 xxx
87 0864MPPB 8-32X4 18.90 ASME B18.6.3 & SAE J82 xxx
88 0880MPPB 8-32X5 26.20 ASME B18.6.3 & SAE J82 xxx
89 1003MPPB 10-24X3/16 3.50 ASME B18.6.3 & SAE J82 xxx
90 1004MPPB 10-24X1/4 3.96 ASME B18.6.3 & SAE J82 xxx
91 1005MPPB 10-24X5/16 4.35 ASME B18.6.3 & SAE J82 xxx
92 1006MPPB 10-24X3/8 4.56 ASME B18.6.3 & SAE J82 xxx
93 1007MPPB 10-24X7/16 4.89 ASME B18.6.3 & SAE J82 xxx
94 1008MPPB 10-24X1/2 5.37 ASME B18.6.3 & SAE J82 xxx
95 1009MPPB 10-24X9/16 5.50 ASME B18.6.3 & SAE J82

SKU #180418 (x20), #180419 (x100)
96 1010MPPB 10-24X5/8 5.63 ASME B18.6.3 & SAE J82 xxx
97 1012MPPB 10-24X3/4 6.86 ASME B18.6.3 & SAE J82 xxx
98 1014MPPB 10-24X7/8 7.60 ASME B18.6.3 & SAE J82 xxx
99 1016MPPB 10-24X1 8.27 ASME B18.6.3 & SAE J82 xxx
100 1020MPPB 10-24X1 1/4 9.54 ASME B18.6.3 & SAE J82 xxx
101 1024MPPB 10-24X1 1/2 10.96 ASME B18.6.3 & SAE J82 xxx
102 1028MPPB 10-24X1 3/4 12.56 ASME B18.6.3 & SAE J82 xxx
103 1032MPPB 10-24X2 15.05 ASME B18.6.3 & SAE J82 xxx
104 1036MPPB 10-24X2 1/4 15.20 ASME B18.6.3 & SAE J82 xxx
105 1044MPPB 10-24X2 3/4 18.00 ASME B18.6.3 & SAE J82 xxx
106 1048MPPB 10-24X3 19.50 ASME B18.6.3 & SAE J82 xxx
107 1052MPPB 10-24X3 1/4 20.60 ASME B18.6.3 & SAE J82 xxx
108 1056MPPB 10-24X3 1/2 22.20 ASME B18.6.3 & SAE J82 xxx
109 1064MPPB 10-24X4 25.00 ASME B18.6.3 & SAE J82 xxx
110 1072MPPB 10-24X4 1/2 27.70 ASME B18.6.3 & SAE J82 xxx
111 1103MPPB 10-32X3/16 3.65 ASME B18.6.3 & SAE J82 xxx
112 1104MPPB 10-32X1/4 4.04 ASME B18.6.3 & SAE J82 xxx
113 1105MPPB 10-32X5/16 4.50 ASME B18.6.3 & SAE J82 xxx
114 1106MPPB 10-32X3/8 4.98 ASME B18.6.3 & SAE J82 xxx
115 1107MPPB 10-32X7/16 5.28 ASME B18.6.3 & SAE J82 xxx
116 1108MPPB 10-32X1/2 5.75 ASME B18.6.3 & SAE J82 SKU #180420 (x20), #050205 (x100), #180421(x1000)
117 1109MPPB 10-32X9/16 6.10 ASME B18.6.3 & SAE J82 xxx
118 1110MPPB 10-32X5/8 6.45 ASME B18.6.3 & SAE J82 xxx
119 1112MPPB 10-32X3/4 7.22 ASME B18.6.3 & SAE J82 xxx
120 1114MPPB 10-32X7/8 7.90 ASME B18.6.3 & SAE J82 xxx
121 1116MPPB 10-32X1 8.71 ASME B18.6.3 & SAE J82 xxx
122 1118MPPB 10-32X1 1/8 9.40 ASME B18.6.3 & SAE J82 xxx
123 1120MPPB 10-32X1 1/4 10.02 ASME B18.6.3 & SAE J82 xxx
124 1122MPPB 10-32X1 3/8 10.75 ASME B18.6.3 & SAE J82 xxx
125 1124MPPB 10-32X1 1/2 11.50 ASME B18.6.3 & SAE J82 xxx
126 1128MPPB 10-32X1 3/4 13.38 ASME B18.6.3 & SAE J82 xxx
127 1132MPPB 10-32X2 14.90 ASME B18.6.3 & SAE J82 xxx
128 1136MPPB 10-32X2 1/4 16.00 ASME B18.6.3 & SAE J82 xxx
129 1140MPPB 10-32X2 1/2 17.90 ASME B18.6.3 & SAE J82 xxx
130 1144MPPB 10-32X2 3/4 20.00 ASME B18.6.3 & SAE J82 xxx
131 1148MPPB 10-32X3 21.01 ASME B18.6.3 & SAE J82 xxx
132 1152MPPB 10-32X3 1/4 22.70 ASME B18.6.3 & SAE J82 xxx
133 1156MPPB 10-32X3 1/2 24.00 ASME B18.6.3 & SAE J82 xxx
134 1164MPPB 10-32X4 27.17 ASME B18.6.3 & SAE J82 xxx
135 1206MPPB 12-24X3/8 6.51 ASME B18.6.3 & SAE J82 xxx
136 1208MPPB 12-24X1/2 7.60 ASME B18.6.3 & SAE J82 SKU #180636 (x20), #180637 (x100), #180638 (x1000)
137 1210MPPB 12-24X5/8 8.30 ASME B18.6.3 & SAE J82 SKU #050132 (x20), #050131 (x100)
138 1212MPPB 12-24X3/4 9.33 ASME B18.6.3 & SAE J82 SKU #230428 (x20), #230429 (x100), #230430 (x1000)
139 1216MPPB 12-24X1 10.92 ASME B18.6.3 & SAE J82 xxx
140 1220MPPB 12-24X1 1/4 11.90 ASME B18.6.3 & SAE J82 xxx
141 1224MPPB 12-24X1 1/2 14.70 ASME B18.6.3 & SAE J82 xxx
142 1232MPPB 12-24X2 18.63 ASME B18.6.3 & SAE J82 xxx
143 1404MPPB 1/4-20X1/4 8.47 ASME B18.6.3 & SAE J82 xxx
144 1405MPPB 1/4-20X5/16 9.28 ASME B18.6.3 & SAE J82 xxx
145 1406MPPB 1/4-20X3/8 9.64 ASME B18.6.3 & SAE J82 xxx
146 1407MPPB 1/4-20X7/16 9.94 ASME B18.6.3 & SAE J82 xxx
147 1408MPPB 1/4-20X1/2 10.23 ASME B18.6.3 & SAE J82 xxx
148 1410MPPB 1/4-20X5/8 12.27 ASME B18.6.3 & SAE J82 xxx
149 1412MPPB 1/4-20X3/4 13.86 ASME B18.6.3 & SAE J82 xxx
150 1414MPPB 1/4-20X7/8 14.86 ASME B18.6.3 & SAE J82 xxx
151 1416MPPB 1/4-20X1 16.08 ASME B18.6.3 & SAE J82 xxx
152 1418MPPB 1/4-20X1 1/8 17.00 ASME B18.6.3 & SAE J82 xxx
153 1420MPPB 1/4-20X1 1/4 18.46 ASME B18.6.3 & SAE J82 xxx
154 1424MPPB 1/4-20X1 1/2 20.39 ASME B18.6.3 & SAE J82 xxx
155 1428MPPB 1/4-20X1 3/4 22.98 ASME B18.6.3 & SAE J82 xxx
156 1432MPPB 1/4-20X2 26.18 ASME B18.6.3 & SAE J82 xxx
157 1436MPPB 1/4-20X2 1/4 28.22 ASME B18.6.3 & SAE J82 xxx
158 1440MPPB 1/4-20X2 1/2 30.58 ASME B18.6.3 & SAE J82 xxx
159 1444MPPB 1/4-20X2 3/4 33.25 ASME B18.6.3 & SAE J82 xxx
160 1448MPPB 1/4-20X3 35.70 ASME B18.6.3 & SAE J82 xxx
161 1456MPPB 1/4-20X3 1/2 41.40 ASME B18.6.3 & SAE J82 xxx
162 1464MPPB 1/4-20X4 46.00 ASME B18.6.3 & SAE J82 xxx
163 1480MPPB 1/4-20X5 56.50 ASME B18.6.3 & SAE J82 xxx
164 1506MPPB 1/4-28X3/8 9.80 ASME B18.6.3 & SAE J82 xxx
165 1508MPPB 1/4-28X1/2 11.14 ASME B18.6.3 & SAE J82 xxx
166 1512MPPB 1/4-28X3/4 14.06 ASME B18.6.3 & SAE J82 xxx
167 3106MPPB 5/16-18X3/8 18.27 ASME B18.6.3 & SAE J82 xxx
168 3108MPPB 5/16-18X1/2 19.97 ASME B18.6.3 & SAE J82 xxx
169 3110MPPB 5/16-18X5/8 21.83 ASME B18.6.3 & SAE J82 xxx
170 3112MPPB 5/16-18X3/4 24.45 ASME B18.6.3 & SAE J82 xxx
171 3116MPPB 5/16-18X1 28.17 ASME B18.6.3 & SAE J82 xxx
172 3120MPPB 5/16-18X1 1/4 31.64 ASME B18.6.3 & SAE J82 xxx
173 3124MPPB 5/16-18X1 1/2 36.00 ASME B18.6.3 & SAE J82 xxx
174 3132MPPB 5/16-18X2 44.60 ASME B18.6.3 & SAE J82 xxx
175 3136MPPB 5/16-18X2 1/4 49.60 ASME B18.6.3 & SAE J82 xxx
176 3140MPPB 5/16-18X2 1/2 52.50 ASME B18.6.3 & SAE J82 xxx
177 3148MPPB 5/16-18X3 60.00 ASME B18.6.3 & SAE J82 xxx
178 3708MPPB 3/8-16X1/2 32.20 ASME B18.6.3 & SAE J82 xxx
179 3712MPPB 3/8-16X3/4 38.00 ASME B18.6.3 & SAE J82 xxx
180 3716MPPB 3/8-16X1 45.50 ASME B18.6.3 & SAE J82 xxx
181 x xxx xxx xxx xxx xxx xxx
182 x xxx xxx xxx xxx xxx xxx
183 x xxx xxx xxx xxx xxx xxx
184 x xxx xxx xxx xxx xxx xxx
185 x xxx xxx xxx xxx xxx xxx
186 x xxx xxx xxx xxx xxx xxx
187 x xxx xxx xxx xxx xxx xxx
188 x xxx xxx xxx xxx xxx xxx
189 x xxx xxx xxx xxx xxx xxx
190 x xxx xxx xxx xxx xxx xxx
x x xxx xxx xxx xxx xxx xxx
Note(s):
  • Pictures may not reflect actual items.
  • Specifications may change without notice, subject to manufacturers.
  • Product Status: - Usually In Stock, - Available but need to order, - Discontinued / Not Available, - Call for more Info
