Features:

• Manufacturer: Not Specified
• Brand: Unbranded
• Size: 10-32x1/2
• MPN: 1108MPPB
• Overview:
  • System: Imperial
  • Type: Machine Screw
  • Standard: ASME B18.6.3 / SAE J82
  • Head & Drive:
    • Design:

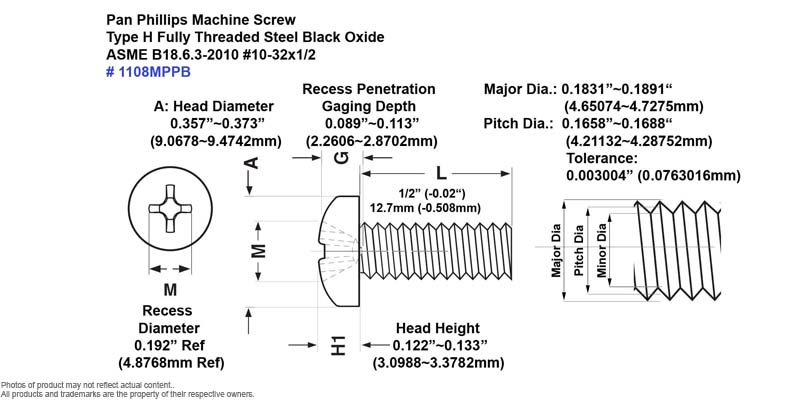

      • Pan Phillips H-Type
    • Head Diameter:
      • Min.: 0.357" (≈ 9.0678mm)
      • Max.: 0.373" (≈ 9.4742mm)
    • Head Height:
      • Min.: 0.122" (≈ 3.0988mm)
      • Max: 0.133" (≈ 3.3782mm)
    • Phillips Driver Size: 2
    • Recess Diameter:
      • 0.192" Ref. (≈ 4.8768mm Ref.)
    • Recess Penetration Gaging Depth:
      • Min.: 0.089" (≈ 2.2606mm)
      • Max.: 0.113" (≈ 2.8702mm)
  • Thread:
    • Nominal Size & Threads per Inch: 10-32 0.190" (≈ 4.826mm) Fully Threaded
    • Length: 1/2" (≈ 12.7mm) Tolerance -0.02" (≈ -0.508mm)
    • Major Diameter:
      • Min.: 0.1831" (≈ 4.65074mm)
      • Max: 0.1891" (≈ 4.7275mm)
    • Pitch Diameter:
      • Min.: 0.1658" (≈ 4.21132mm)
      • Max.: 0.1688" (≈ 4.28752mm)
      • Tolerance: 0.003004" (≈ 0.0763016mm)
  • Material: Steel
  • Finish: Black Oxide
• Condition: New, bulk, seller repackaged.
• Packaging: Non-retail packaging, in unprinted box or plastic bag.
• Information for reference only, subject to change without prior notice.
