Rack Mount Cabinets
DAMAC AxisPlus Series
RMC-CCPxxx

Links:

Popular Pre-Configured Models:

P/N & Drawing

WxHxD (inch)

 Mnt. / Rails

Door (w/ Lock)

Hinge
F / R

 Key
Latch		 Sides Top

Color

Wt / lb

Front

Rear
1 CCO78EQB1SASV-3 42U 24x78x42 19" M6 C-Nut Mesh S-Mesh R / R Alike Solid x2 V Black ---
x --- --- --- --- --- --- --- --- --- --- --- ---
x --- --- --- --- --- --- --- --- --- --- --- ---

Note:
> C-Nut - Cage Nut
> F / R - Front / Rear; R - Right; L - Left
> S-Mash - Split Mash 2pc Door
> V - Vented

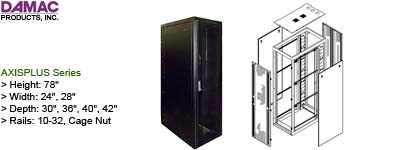

Introductions:

The new AXISplus Series is an enhanced, high value enclosure system designed to compete with today’s most popular 42U cabinet configurations. Featuring a redesigned chassis and a unique rear PDU/cabling cavity in the cabinet rear. The unique cabinet cavity includes universal PDU button mounting and flexible fiber and copper management rings and straps. PDU’s and cabling are recessed into the frame allowing unobstructed front to back airflow and total access to the rear of rack mounted equipment.

Model Sizes:

  • Height: 78"
  • Width: 24", 28"
  • Depth: 30", 36", 40", 42"
  • Rails: 10-32, Cage Nut

Specifications:

  • Fully Welded Construction: 2000 lb. static wt. / 1000 lb. rackable
  • Two sets of adjustable mounting rails w/ EIA spacing
  • 19" rack-mount equipment, 42U
  • Mounting rails include RMU markings
  • Reinforced doors, removable w/ locks and security hinges
  • Doors exceed active equipment req. for air-flow, hot/cold aisle ready
  • Removable flush side panels with slam latches
  • Flush top panels w/ cable knock-outs and brush pass-thru
  • Open bottom for raised floor access and ventilation
  • Floor leveling and mounting provision, accessible when fully populated
  • Caster kit included
  • Recessed rear cabling and PDU mounting cavity
  • Special rear cavity allows 100% access to mounted equipment and does not obstruct front-to-back airflow increasing cooling efficiencies.
  • Grounding stud
  • Textured epoxy power-coat finish
  • Cabinet ships fully assembled
  • Fits multiple vendor environments
  • UL Listed
