APC AV In-Wall Power Filter and Connection Kit
protect connected equipment from surges,
spikes or even blackouts
PSG
W-APC-xxx

Links:

Overview:

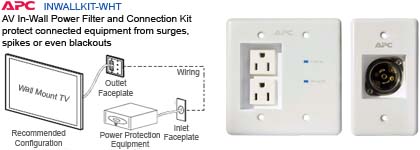

The INWALLKIT is designed to work in conjunction with a power conditioner to protect wall-mounted plasmas and LCD TVs. By providing a safe and NEC compliant means of delivering conditioned and protected power to a remote display, the INWALLKIT helps to protect connected equipment from surges, spikes or even blackouts. Component-specific noise filtering circuit ensures audio and video signals are free of interference.

Features:
  • LED status indicators: Quickly understand unit and power status with visual indicators.
  • Isolated filter banks: Eliminates electromagnetic

Specifications:

  • Physical:
    • Net Weight: 1.50 lbs. (0.68 kg)
    • Maximum Height: 4.72 inches (120 mm)
    • Maximum Width: 4.72 inches (120 mm)
    • Maximum Depth: 1.97 inches (50 mm)
    • Shipping Weight: 3.44 lbs. (1.56 kg)
    • Shipping Height: 4.75 inches (121 mm)
    • Shipping Width: 5.40 inches (137 mm)
    • Shipping Depth: 8.25 inches (210 mm)
    • Color: White
    • Units per Pallet: 192.00
  • Environmental
    • Operating Environment: 32 - 104 F (0 - 40 C)
    • Operating Relative Humidity: 0 - 95%
    • Operating Elevation: 0-10000 feet (0-3000 meters)
    • Storage Temperature: 5 - 113 F (-15 - 45 C)
    • Storage Relative Humidity: 0 - 95%
    • Storage Elevation: 0-50000 feet (0-15000 meters)
  • Conformance
    • Regulatory Approvals: ETL
    • Standard Warranty: Lifetime
