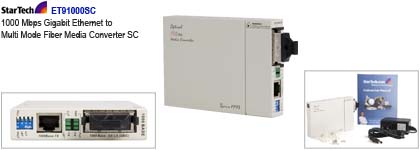

This Gigabit Ethernet to MM Fiber Media Converter creates a cost-effective Gigabit Ethernet-fiber link, transparently converting to/from 1000BaseT Ethernet signals and 1000BaseSX optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 550m (0.3 miles), providing a simple solution for connecting 1000BaseT Ethernet networks to remote locations using SC-terminated multimode fiber while delivering ideal network performance and scalability.
Easy to set up and install in a matter of seconds, this durable and compact fiber media converter features a heavy-duty power supply that can withstand challenging environments, and offers 6 LED indicators to make monitoring the Ethernet/fiber network link easy.
Designed to offer a durable and convenient Ethernet to fiber solution, the Gigabit Ethernet to MM Fiber Media Converter features an all-steel chassis, and can be wall-mounted for out-of-the-way installations.
This versatile GbE Ethernet to MM Fiber Media Converter offers guaranteed compatibility with 3COM™, Cisco™, Lucent™ and Nortel™ networks and complies with applicable IEEE 802.3 standards.
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
- Increases the distance of your existing network up to 550 m (Multi-mode)
Features:
- Plug and Play installation allows the converters to be connected to a PC, hub or a switch using an auto-sensing MDI/MDIX port
- Supports a maximum multimode fiber optic cable distance of 550 meters
- It’s compact design and weight makes it portable and unobtrusive to carry
- LED indicators continuously shows operating status of the converter
- Supports Half-Duplex and Full-Duplex operating modes up to 2 Gigabits/sec
- Standard RJ-45 connectors for connecting to UTP media, and SC connector for connecting to fiber media
- Supports IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX industry standards
- Guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks
- Easy installation and setup in seconds
Applications:
- Connects distant network or devices up to 550m in an existing multimode network
- Connecting network servers and power users to Gigabit backbone
- LAN-to-LAN connectivity between remote offices
- Connect remote areas of large buildings to the main network
Parts Numbers:
Dell Harmony A0290779 TechData Dis 294496 ASI Distribution USA 81699 D and H ET91000SC Ingram Micro USA C45595 Synnex US STA-ET91000SC UPC Code 065030799195
Specifications:
Color Beige Connector Type(s) 1 - RJ-45 Female Connector Type(s) 2 - Fiber Optic SC Female Industry Standards IEEE 802.3ab 1000BaseT, IEEE 802.3z 1000BaseSX LED Indicators 1 - Fiber LED Indicators 1 - Power LED Indicators 1 - UTP Maximum Cable Length 1804 ft [550 m] Maximum Data Transfer Rate 1000Mbps (1Gbps) Power Adapter - DC Voltage DC 12 Product Height 0.79 in [20 mm] Product Length 4.84 in [123 mm] Product Weight 24.36 oz [690 g] Product Width 3.39 in [86 mm] Shipping (Package) Weight 1.59 lb [0.72 kg] Wave Length 850nm Fiber Operating Mode Half/Full-Duplex Power Adapter Included Yes Output Voltage 12 DC Output Current 0.5 A Center Tip Polarity Positive Regulatory Approvals FCC Class A & CE Mark C-Tick Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -10°C to 70°C (14°F to 158°F)
