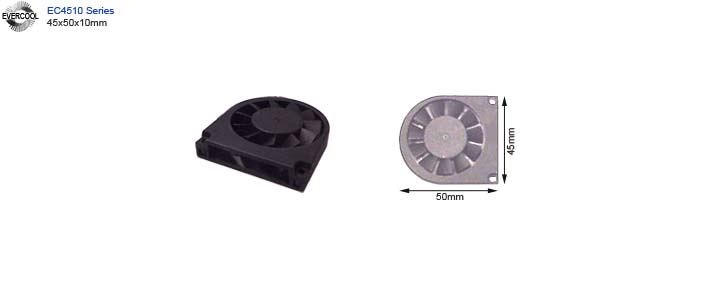

Blower Fan 45x50x10mm
Evercool EC-4510xxx-B
FNB-4510-xxx

Link(s):

Specifications:

# Make & P/N # DC Amp Bearing RPM CFM dBA Note
1 EC4510H05S-B 5V 0.16A Sleeve Bearing xxx xxx xxx P/N: SB-I (5V)
2 EC4510H12C-B 12V 0.10A Single Ball Bearing 5500   2.05 25.00 xxx
3 EC4510H12B-B 12V 0.10A Double Ball Bearing 5500   2.05 25.00 xxx
4 EC4510H12S-B 12V 0.10A Sleeve Bearing 5500   2.05 25.00 xxx
5 EC4510M12C-B 12V 0.09A Single Ball Bearing 5000   1.87 24.00 xxx
6 EC4510M12B-B 12V 0.09A Double Ball Bearing 5000   1.87 24.00 xxx
7 EC4510M12S-B 12V 0.09A Sleeve Bearing 5000   1.87 24.00 xxx
8 EC4510L12C-B 12V 0.07A Single Ball Bearing 4500   1.74 23.00 xxx
9 EC4510L12B-B 12V 0.07A Double Ball Bearing 4500   1.74 23.00 xxx
10 EC4510L12S-B 12V 0.07A Sleeve Bearing 4500   1.74 23.30 xxx
11 xxx xxx xxx xxx xxx xxx xxx xxx
12 xxx xxx xxx xxx xxx xxx xxx xxx
x xxx xxx xxx xxx xxx xxx xxx xxx

Note:

  • Material: impeller & Frame: Plastic(UL94V-0)

  • Lead Wires: UL 1007 AWG#26 Or Equivalent
    Red Wire Position(+), Black Wire Negative(-), Yellow Wire Or Blue Wire Signal(FG)

  • Function type is optional.

  • The max air flow and the speed are measured in free air; max air pressure is measured at zero air flow.

  • Noise is measured in anechoic chamber in free air, one meter from intake side.

  • All readings are typical values at rated voltage.

  • Specifications are subject to change without notice.

  • Fan screws are not included
