Link(s):

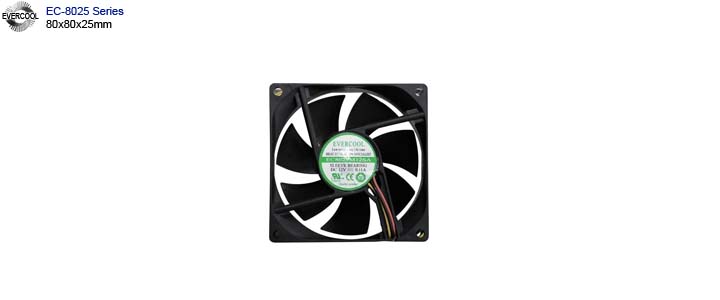

• Evercool EC-8025 Series Specification

Specification:

#	Make & P/N #	DC	Amp	Bearing	RPM	CFM	dBA	Note
1	EC8025TH12x	12V	0.34	EL Bearing	4000	48.22	25.00	xxx
2	EC8025HH12x	12V	0.28	EL Bearing	3500	42.83	28.00	xxx
3	EC8025H12x	12V	0.16	2x Ball Bearing	3000	36.48	31.00	xxx
4	EC8025M12x	12V	0.11	1x Ball Bearing	2500	25.02	34.00	xxx
5	EC8025L12x	12V	0.08	Sleeve Bearing	2000	22.26	38.00	xxx
6	EC8025LL12x	12V	0.06	Sleeve Bearing	1400	16.06	25.00	xxx
7	EC8025SL12x	12V	0.05	Sleeve Bearing	1200	14.61	28.00	xxx
8	EC8025TH24x	24V	0.22	EL Bearing	4000	48.22	31.00	xxx
9	EC8025HH24x	24V	0.18	EL Bearing	3500	42.83	34.00	xxx
10	EC8025H24x	24V	0.14	2x Ball Bearing	3000	36.48	38.00	xxx
11	EC8025M24x	24V	0.10	1x Ball Bearing	2500	25.02	37.00	xxx
12	EC8025L24x	24V	0.06	Sleeve Bearing	2000	22.26	35.00	xxx
13	xxx	xxx	xxx	xxx	xxx	xxx	xxx	xxx
Note:

• Pictures may not reflect actual items.
• Specifications may change without notice, subject to manufacturers.
• Product Status: - Usually In Stock, - Available but need to order, - Discontinued / Not Available, - Call for more Info
