For reference only, photos / specs may not reflect actual content.

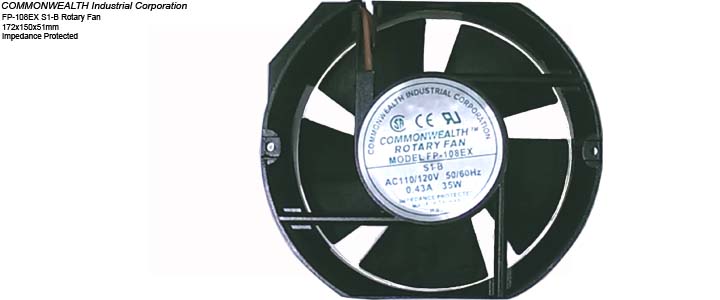

Axial Flow Fan
CommonWealth Rotary Fan
Model: FP-108EX
172x150x51mm
FNAC-172-xxx

Link(s):

Features:

  • Bearing System: Sleeve Bearing or Ball Bearing

  • Impeller: Plastic with Fiber Glass Filled UL 94V-0

  • Housing: Die Cast Aluminum Painted Black or Natural Color

  • Connecting: Terminal or Wire Leads

  • Speed:

    • S-1 High Speed Type

    • S-2 Medium Speed Type

    • S-3 Low Speed Type

Options:

# Make & P/N # V Amp Bearing RPM CFM dBA Note
1 FP-108EX S1-B 110 110V / 220V 0.50A / 0.45A Ball Bearing 2800~3100 190~235 45~50 xxx
2 FP-108EX S2-B 110 110V / 220V 0.42A / 0.37A Ball Bearing 2300~2400 165~170 33~38 xxx
3 FP-108EX S3-B 110 110V / 220V 0.35A / 0.33A Ball Bearing 1900~2100 106~110 30~33 xxx
4 FP-108EX S1-S 110 110V / 220V 0.50A / 0.45A Sleeve Bearing 2800~3100 190~235 45~50 xxx
5 FP-108EX S2-S 110 110V / 220V 0.42A / 0.37A Sleeve Bearing 2300~2400 165~170 33~38 xxx
6 FP-108EX S3-S 110 110V / 220V 0.35A / 0.33A Sleeve Bearing 1900~2100 106~110 30~33 xxx
7 FP-108EX S1-B 220 220V / 240V 0.23A / 0.21A Ball Bearing 2800~3100 190~235 45~50 xxx
8 FP-108EX S2-B 220 220V / 240V 0.18A / 0.17A Ball Bearing 2300~2400 190~235 33~38 xxx
9 FP-108EX S3-B 220 220V / 240V 0.15A / 0.12A Ball Bearing 1900~2100 190~235 30~33 xxx
10 FP-108EX S1-S 220 220V / 240V 0.23A / 0.21A Sleeve Bearing 2800~3100 190~235 45~50 xxx
11 FP-108EX S2-S 220 220V / 240V 0.18A / 0.17A Sleeve Bearing 2300~2400 190~235 33~38 xxx
12 FP-108EX S3-S 220 220V / 240V 0.15A / 0.12A Sleeve Bearing 1900~2100 190~235 30~33 xxx
13 xxx xxx xxx xxx xxx xxx xxx xxx

Note:

  • Pictures may not reflect actual items.

  • Specifications may change without notice, subject to manufacturers.
