For reference only, photos / specs may not reflect actual content.

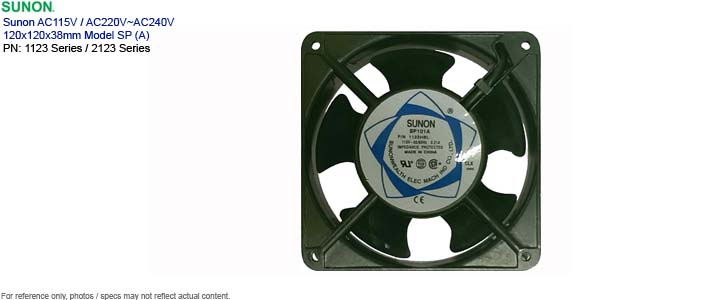

Axial Flow Fan
Sunon AC 115V / AC 220V ~ AC 240V
Model SP101A / SP102A / SP103A / SP201A / SP202A / SP203A
120x120x38mm PN: 1123 Series / PN: 2123 Series
FNAC-xxx

Link(s):

Options:

#

P/N #

 V Amp Bearing RPM CFM dBA Note
1 SP100A 1123XSL.GN 115V 0.26A / 0.24A Ball Bearing 2700~3100 95~115 44~49 xxx
2 SP100A 1123XST.GN 115V 0.26A / 0.24A Ball Bearing 2700~3100 95~115 44~49 xxx
3 SP101A 1123HSL.GN 115V 0.21A / 0.18A Ball Bearing 2550~2900 85~105 43~48 xxx
4 SP101A 1123HST.GN 115V 0.21A / 0.18A Ball Bearing 2550~2900 85~105 43~48 xxx
5 SP102A 1123MSL.GN 115V 0.17A / 0.16A Ball Bearing 2400~2600 78~84 33~38 xxx
6 SP102A 1123MST.GN 115V 0.17A / 0.16A Ball Bearing 2400~2600 78~84 33~38 xxx
7 SP103A 1123LSL.GN 115V 0.13A / 0.11A Ball Bearing 2000~2200 70~76 32~36 xxx
8 SP103A 1123LST.GN 115V 0.13A / 0.11A Ball Bearing 2000~2200 70~76 32~36 xxx
9 SP100A 1123XBL.GN 115V 0.26A / 0.24A Sleeve Bearing 2850~3150 97~117 45~50 xxx
10 SP100A 1123XBT.GN 115V 0.26A / 0.24A Sleeve Bearing 2850~3150 97~117 45~50 xxx
11 SP101A 1123HBL.GN 115V 0.21A / 0.18A Sleeve Bearing 2750~3050 87~107 45~50 xxx
12 SP101A 1123HBT.GN 115V 0.21A / 0.18A Sleeve Bearing 2750~3050 87~107 45~50 xxx
13 SP102A 1123MBL.GN 115V 0.17A / 0.16A Sleeve Bearing 2500~2700 80~88 35~40 xxx
14 SP102A 1123MBT.GN 115V 0.17A / 0.16A Sleeve Bearing 2500~2700 80~88 35~40 xxx
15 SP103A 1123LBL.GN 115V 0.13A / 0.11A Sleeve Bearing 2150~2300 72~78 37~39 xxx
16 SP103A 1123LBT.GN 115V 0.13A / 0.11A Sleeve Bearing 2150~2300 72~78 37~39 xxx
17 SP200A 2123XSL.GN 220V~240V 0.14A / 0.12A Ball Bearing 2700~3100 95~115 44~49 xxx
18 SP200A 2123XST.GN 220V~240V 0.14A / 0.12A Ball Bearing 2700~3100 95~115 44~49 xxx
19 SP201A 2123HSL.GN 220V~240V 0.125A / 0.11A Ball Bearing 2550~2900 85~105 43~48 xxx
20 SP201A 2123HST.GN 220V~240V 0.125A / 0.11A Ball Bearing 2550~2900 85~105 43~48 xxx
21 SP202A 2123MSL.GN 220V~240V 0.09A / 0.08A Ball Bearing 2300~2500 78~84 33~38 xxx
22 SP202A 2123MST.GN 220V~240V 0.09A / 0.08A Ball Bearing 2300~2500 78~84 33~38 xxx
23 SP203A 2123LSL.GN 220V~240V 0.06A / 0.05A Ball Bearing 1800~2000 63~70 32~36 xxx
24 SP203A 2123LST.GN 220V~240V 0.06A / 0.05A Ball Bearing 1800~2000 63~70 32~36 xxx
25 SP200A 2123XBL.GN 220V~240V 0.14A / 0.12A Sleeve Bearing 2850~3150 97~117 45~50 xxx
26 SP200A 2123XBT.GN 220V~240V 0.14A / 0.12A Sleeve Bearing 2850~3150 97~117 45~50 xxx
27 SP201A 2123HBL.GN 220V~240V 0.125A / 0.11A Sleeve Bearing 2750~3050 87~107 45~50 xxx
28 SP201A 2123HBT.GN 220V~240V 0.125A / 0.11A Sleeve Bearing 2750~3050 87~107 45~50 xxx
29 SP202A 2123MBL.GN 220V~240V 0.09A / 0.08A Sleeve Bearing 2400~2600 78~84 34~39 xxx
30 SP202A 2123MBT.GN 220V~240V 0.09A / 0.08A Sleeve Bearing 2400~2600 78~84 34~39 xxx
31 SP203A 2123LBL.GN 220V~240V 0.06A / 0.05A Sleeve Bearing 2150~2300 72~78 37~39 xxx
32 SP203A 2123LBT.GN 220V~240V 0.06A / 0.05A Sleeve Bearing 2150~2300 72~78 37~39 xxx
33 xxx xxx xxx xxx xxx xxx xxx xxx

Note:

  • Pictures may not reflect actual items.

  • Specifications may change without notice, subject to manufacturers.
