HDMI Extender thru Twisted Pairs

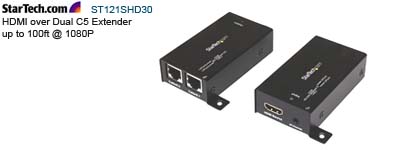

Startech ST121SHD30
HDMI over C5 Extender

EX-HDMI-xxx

Links:

HDMI® Over Cat5 / Cat6 Extender with IR - 100 ft (30m) Power Free

  • Supports Cat5e and Cat6 Ethernet cabling.
  • Power over HDMI.
  • No software / drivers required.
  • Supports HD resolutions up to 1080p (1920x1080)
  • Includes transmitter (local) and receiver (remote) unis.
Overview:
The ST121SHD30 HDMI® over CAT5e/CAT6 Video Extender kit lets you extend HDMI audio/video and an IR remote control signal by up to 100 feet (30 Meters) over dual Cat5e or Cat6 cable. For added versatility this HDMI extender kit is powered via the HDMI bus, and does not require any additional power adapter.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring.  Plus, because the extender kit does not require a power adapter, you can easily extend an HDMI signal in areas where access to power outlets is limited.

The HDMI over Cat5e/Cat6 video extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video.  The Extender also works to extend Infrared IR signals from remote controls, perfect for controlling your video source from your video destination.

For additional distance, HDMI cables up to 32-feet (10-meters) in length can be used on the local and remote ends.

Specifications:

Hardware

Cabling

Cat 5 UTP or better

Ports

1

Daisy-Chain

No

Connector(s)

Local Unit Connectors

1 - HDMI (19 pin) Female

2 - RJ-45 Female

Remote Unit Connectors

2 - HDMI (19 pin) Female

2 - RJ-45 Female

Performance

Max Distance

30 m / 100 ft

Maximum Digital Resolutions

1080p / 1920x1080

Wide Screen Supported

Yes

Physical Characteristics

Color

Black

Enclosure Type

Aluminum

Product Height

0.9 in [22 mm]

Product Length

3.2 in [82 mm]

Product Weight

8.3 oz [235 g]

Product Width

1.8 in [45 mm]

Indicators

LED Indicators

1 - Input

1 - Output

Environmental

Humidity

0% - 80 %

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 60°C (14°F to 115°F)

Packaging Information

Shipping (Package) Weight

0.7 lb [0.3 kg]

What's in the Box

Included in Package

1 - HDMI over CAT5e/6 UTP Transmitter

2 - HDMI over CAT5e/6 UTP Receiver

4 - Foot Pad Set

5 - User Manual

3 - IR Extender Kit
