Structured Wiring Enclosure
Leviton Structured Media™ Center
140 Series Enclosure
Box-LV-xxx

Link(s):

Structured Media® Center, 14 in.

This 14" professional-grade whole-house media enclosure creates one distribution point in the home for all low voltage cables. The SMC-140 is ideal for condos and apartments or more modest homes requiring limited audio/video/voice and data configurations. It will accommodate two Pre-Configured Structured Cabling Panels. The sturdy design and functionality facilitate installation, reducing job-site labor costs, and making it ideal for essential home networking.

Leviton's Series 140 enclosure is packaged separately or as part of a kit that includes a flush-mount cover. Flush-mount covers are also sold separately. For easier access and added security, hinged covers (with an optional lock and key set) are available and sold separately. cULus and ACA listed; complies with all TIA/EIA 568-A and TIA/EIA 570-A requirements, and meets FCC part 68.

Features:

  • Accommodates up to two full-width Pre-Configured Structured Cabling Panels-delivering audio/video, voice and data to any room of the home or office.
  • Positive ''stops'' on housing sidewalls prevent the enclosure from falling through studs during installation.
  • One piece white steel unit holds full and half-width expansion modules.
  • Can be surface-mounted or recessed. Ideal for new installations or retrofits.
  • Purchase empty or in kits with a flush-mount cover.
  • Powder-coated white flush-mount and hinged covers feature a 3/4'' overlap to hide irregular drywall cuts.
  • Hinged cover opens 180 degrees and mounts on right or left side for easy-access in tighter spaces.
  • An optional lock and key set are available for the hinged cover to offer added security.
  • Mounting guides on the cover align screw-holes and reduce the chances of dropping during attachment.
  • Combine two or more enclosures for larger installations or future expansion.
  • Mounting guides on the cover align screw-holes and reduce the chances of dropping during attachment.
  • One cut-out on bottom of SMC for single-gang (surge and non-surge) J-Box power module.

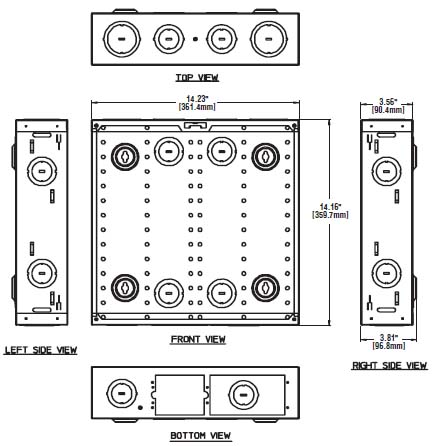

Drawing:
