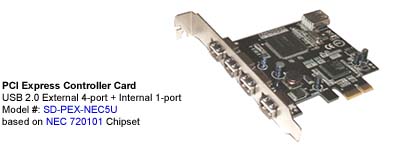

PCI Express Controller Card
USB 2.0 4-port External 1-port Internal
SD-PEX-NEC5U based on NEC 720101 Chipset
C-U2-PCE-4E1I-SD-NEC

Brief:
> PCI-Express USB 2.0 Controller Card 5x ports, NEC Chipset

Specification General:
> NEC 720101 Chipset
> 1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel
> 5x Ports Adaptor includes 4x External + 1x Internal Ports (shared with first external port)
> USB 2.0 EHCI and USB 1.1 OHCI compliant
> Compliant with PCI-Express Revision 1.0a
> Backward compatible with USB 1.1 devices
> Transfer rate: each port up to 480Mpbs
> Over current protection, each port 500mA
> Simultaneous operation of multiple high-performance devices
> Fully plug & play and hot swapping supported
> Supports up to 127 devices per port

Approval:
> FCC, CE

System Requirement:
> PC computer with PCI-Express (X1) Slot
> MS Windows 98SE/Me/2000/XP/2003 Server/XP 64-bit/Vista

Package Includes:
> USB PCI-Express card
> CD Driver
> User's manual
