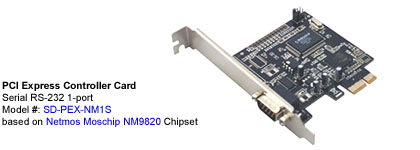

PCI Express Controller Card
Serial RS232 DB9 1-port
SD-PEX-NM1S based on Netmos Moschip NM9820 Chipset
C-S-PCE-1-SD-NM9820

Brief:
> PCI-Express 1x RS-232 Serial Port Card, Moschip 9820 Chipset

Features:
> MOSCHIP NM9820 Chipset
> 1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel
> 1-Serial port with transfer rate up to 1.5Mbyte/s

Specification:
> Compatible with PCI-Express Revision 1.0a
> Fast Data Rates up to 1.0 MBytes/sec
> Fully Plug & Play compatible
> Compatible with Standard 16C550 UART with 16-Byte Transmit-Receive FIFO
> Support RS-232 Hardware Flow Control

Approval:
> FCC, CE

System Requirement:
> PC computer with PCI-Express (1X) Slot
> Windows 98SE/ME/2000/XP/2003 Server/XP 64-bit, Linux, DOS

Package Includes:
> Includes 1x Serial PCI-Express card
> User's manual
> Software driver disc x 1
