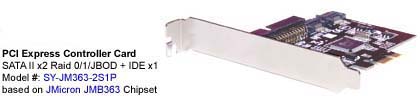

PCI Express Controller Card
SATA II (SATA 2) Raid + IDE
SY-JM363-2S1P based on JMicron JMB363 Chipset
C-SA-IDE-PCE-JM-R

Brief:
> PCI-Express SATA/IDE Combo Controller Card SATA Raid

Features:
> JMicron 363 Chipset
> 2x internal SATA ports + 1x internal IDE port

Specification General:
> Compliant with Serial ATA AHCI (Advanced Host controller Interface) Spec. Reversion 1.0
> Compliant with Bus Mster Programming interface for IDE ATA Controllers Revision 1.0
> Compliant with PCI express Base Spec Revision 1.0a
> Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
> Compliant with Serial ATA II: Extensions to Serial ATA 1.0a Revision 1.1
> Compliant with Gen2i and Gen2m Serial SATAII: Electrical Spec. Revision 1.0
> Integrated 1-Lane PCI Express PHY and 2-port SATA II PHY
> Integrated two PLL for both PCI Express bus and SATA II interface
> Output swing control and Automatic impedance calibration for both PCI express and SATA II
> Supports up to 64K Byte external Flash for BIOS expansion
> Supports a a slave SMBus interface (follow System Management Bus Specification Revision 1.1)
> Internal native interface multiplexed to 2-port SATA II and 1-port PATA
> Supports ATA 133 high performance hard disk drives
> Supports PCI Plug and Play. PCI interrupt sharing and coexists with main board IDE controller

System Requirement:
> PC computer with PCI-Express (X1) Slot
> Windows 98, ME, NT 4.0, 2000, XP and Vista

Package Includes:
> SATA/IDE Combo card
> CD Driver
> User's manual
