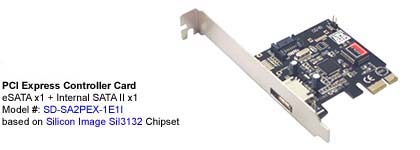

PCI Express Controller Card
eSATA x1 + SATA II (SATA 2) x1
SD-SA2PEX-1E1I Silicon Image SiI3132 Chipset
C-SA-PCE-1E1I-SD-SI

Brief:
> PCI-Express Serial ATA II (SATA II) Card, 1x Internal Port and 1x External Port (e-SATA) SiI3132 Chipset

Features:
> e-SATA 1-Port + SATA II 1-Port with 3.0Gb/s (1x External + 1x Internal SATA II Ports)
> 1-Lane (x1) PCI-Express with transfer rate 2.5 Gb/s Full Duplex channel
> Fully Plug & Play
> Hot plug of external SATA devices supported

Specification General:
> Compliant with PCI Express Specification Revision 1.0a
> Compliant with Serial ATA II Specification
> Compliant with Gen2i, Gen2m SATA II Electrical Specification Revision 1.0
> Data transfer rate up to 3.0Gb/s
> Backward compatible to SATA 1.0 Specification
> Support Native Command Queue (NCQ), FIS Based Switching with Port Multiplier
> Support 2-independent SATA channels
> All external ports are compatible to eSATA Specification

System Requirement:
> PC computer with PCI-Express (X1) Slot
> Support Windows 2000/XP/Server 2003/XP 64-bit/Vista, Linux, Mac OS

Package Includes:
> SATA2 Controller card
> CD Driver
> User's manual
