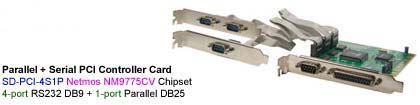

Parallel & Serial PCI Combo Card
SD-PCI-4S1P based on Netmos NM9775CV Chipset
DB25 Printer Port x1 & DB9 Serial Port x4
C-P1S4-PCI-SD

Brief:
> PCI to 4 Serial ports & 1 Parallel port controller card based on Netmos NM9775CV

Features:
> Plug & Play - Automatically selects IRQ and I/O address
> Supports PCI IRQ sharing

Specification General:
> PCI Specification Revision 2.1 compliant

Serial Interface:
> Compatible with standard 16C550 UART with 16 byte transmit-receive FIFO
> Fast data rates up to 1 Mbytes/sec
> DB9 serial port connector x 1
> Pin header serial port connector x 3

Parallel Interface:
> SPP, PS2, EPP, ECP compatible IEEE 1284 printer port
> Fast data rates up to 1.5 Mbytes/sec
> Built in 16 Byte FIFO
> DB25 parallel port connector x 1

System Requirement:
> PC computer with one 32-bit PCI slot
> MS Windows 98SE/Me/2000/XP/NT4.0, Linux, DOS

Package Includes:
> PCI to 4-Serial & 1-Parallel port host controller card
> One rear bracket with two DB9 serial port connectors
> One rear brackets with one DB9 serial port connector and one DB25 parallel port connector
> User's manual
> Software driver disc x 1
