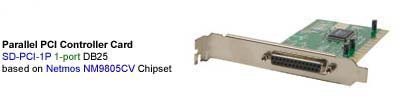

Parallel PCI 1-port DB25 Printer Port Control Card
SD-PCI-1P based on Netmos NM9805CV Chipset
C-P-PCI-1-SD

Brief:
> PCI to Parallel 1-port Controller Card based on Netmos NM9805CV

Features:
> Plug & Play - Automatically selects IRQ and I/O address
> Supports PCI IRQ sharing

General:
> PCI Specification Revision 2.1 compliant
> SPP, PS2, EPP, ECP compatible IEEE 1284 printer port
> Fast data rates up to 1.5 Mbytes/sec
> Built in 16 Byte FIFO
> DB25 parallel port connector x 1

System Requirement:
> PC computer with one 32-bit PCI slot
> MS Windows 98SE/Me/2000/XP/NT4.0, Linux, DOS

Package Includes:
> PCI to Paralle 1-port controller card
> User's manual
> Software driver disc x 1
