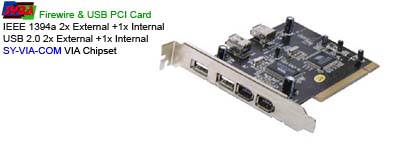

Firewire & USB PCI Combo Card
SY-VIA-COMBO based on VIA Chipset
IEEE 1394 3-port & USB 2.0 3-port

C-FU-PCI-3F3U-SY-VIA


Brief:
>
IEEE 1394a 3x ports FireWire and USB 2.0 3x ports PCI Card, 6 iLink Cable (VIA Chipset)

Features:

The FireWire IEEE 1394a ports uses the most advanced, high-speed digital technology, low-cost and high bandwidth isochronous (real-time) data interfacing between computers, computer peripherals and consumer electronics products, such as, camcorders, VCRs, printers, TVs, and digital cameras. With this IEEE 1394 standard, users can transfer video or capturing images from a digital camera or camcorder to PC with no image degradation.

The USB 2.0 ports are compliant with the Universal Serial Bus Specification Revision 2.0 and Open Host Controller Interface Specification for low-speed (1.5Mbps) / full-speed (12Mbps) speed signaling and Enhanced Host Controller Interface Specification for high-speed signaling (480Mbps).

Specification General:
> Embedded 1394a OHCI Link and PHY core function into single host controller.
> Complies with 1394 OpenHCI Specifications V 1.0 and V 1.1
> Compatible with Microsoft OHCI, DV, and SBP-2 driver in Windows 98/98SE/ME/2000/XP and Mac OS operating system.
> Compliant with PCI specification 2.2
> Support High Performance Bus Mastering.
> Integrated 400Mbit PHY.
> Compliant with 1394 Standard for High Performance Serial Bus & P1394a Supplement 4.0
> Each 1394a fully compliant cable port supporting 100/200/400 Mbit/sec.
> Compliant with PCI Bus Power Management Specification V1.1
> Full support of real time dynamic insertion and removal of devices.
> Fully supported by Microsoft Windows 98/98SE/ME/2000/XP operating system.
> High Speed USB 2.0 2x External + 1x Internal Ports
> Compliant with Universal Serial Bus Specification Revision 2.0
> Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
> Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
> Support PCI-Bus Power Management Interface Specification release 1.1
> Support high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) transaction.
> Support device hot-swap and wake-up.
> Support all USB-compliant devices.
> Internal ports: Up to 4 USB ports
> Driver support for Windows 98/98SE/ME/2000/XP operating system.

System Requirement:
> PC computer with Windows 98SE/ME/2000/XP, MAC OS 9.0 & above.

Package Includes:
> One FireWire IEEE 1394a + USB 2.0 Combo Card
> One User Guide
> One 6 1394a Cable
> One CD Driver.
