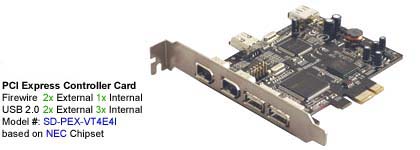

PCI Express Controller Card
Firewire IEEE 1394a 2-port External 1-port Internal
USB 2.0 2-port External 3-port Internal
SD-PEX-VT4E4I based on NEC Chipset
C-FU-PCE-3F5U-SD-NEC

Brief:
> PCI-Express USB 2.0 + 1394a FireWire Combo Card 8x ports, NEC Chipset

Specification General:
> NEC Chipset
> USB 2.0 (3x Internal & 2x External) + Firewire 1394a (1x Internal & 2x External)
> 1-Lane (x1) PCI-Express with transfer rate 2.5 GB/s full duplex channel
> Compliant with PCI-Express Revision 1.0a
> Fully Plug & Play
> Works with Microsoft Windows 98SE/ME/2000/XP/2003 Server/XP 64-bit

USB 2.0 interface
> USB 2.0 Specification Compliant
> Backward compatibile with USB 1.1 Specification
> Open Host Controller Interface Specification for USB Rev 1.0a Compliant
> Enhanced Host Controller Interface Specification for USB Rev 0.95 Compliant
> Data Transfer Rate: High Speed 480Mbps, Full Speed 12Mbps, and Low Speed 1.5Mbps Supported
> Connects up to 127 USB devices simultaneously
> External Port: USB-A x 2
> Internal Port: USB-A x 1 + Pin Header x 2

Firewire 1394a interface
> IEEE 1394-1995 Standard compliant, for High Performance Serial Bus and P1394A Supplement 4.0
> 1394 OpenHCI Specification V1.0 and V1.1 compliant
> Data transfer rate: 100/200/400 Mbps
> External Port: 1394a 6-Pin x 2
> Internal Port: 1394a 6-Pin x 1

System Requirement:
> PC computer with PCI-Express (X1) Slot
> MS Windows 98SE/Me/2000/XP/2003 Server/XP 64-bit/Vista

Package Includes:
> USB 2.0 / 1394a PCI-Express Combo card
> CD Driver
> User's manual
