ExpressCard Host Adapter

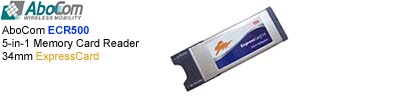

Abocom ECR500 Memory Card Reader
5-in-1 Express Card
CR-EX34-AB-ECR500
The ECR500 5 in 1 Card Reader ExpressCard supports
USB2.0 High Speed data transferring rate. It provides accesses to the
most popular 5 kinds of flash memory cards, Memory Stick Card, Memory
Stick PRO Card, Secure Digital Card, Multi Media Card, and xD-Picture
Card.
The ECR500 also contains a single monolithic SOC (System-On-Chip)
integrated with an enhanced 8051 MCU core, internal program/date memory
banks and a variety of flash peripheral cores on it.
Features:
> Compliant with USB Mass Storage Class Bulk only Transport
Specification Revision 1.0
> Compliant with USB Specification Revision 2.0
> HS (480 Mbps) and FS (12 Mbps) transfer
> Integrated Fast 8051 microprocessor
> File Manager with Auto Disk Drive Icon
> Error Correction Control (ECC) capability
> Support USB suspend mode (< 500 μA)
> USB2.0 Hi Speed Transfer with Bus Power
> Low power consumption for USB Bus Power application
> Regulator, Power On Reset and Low Voltage Detector
> Supports Memory Stick-PRO 4-bit parallel transfer mode
> Supports In System Programmable (ISP) through USB port
> Two LED indicators for USB power and access status
> Built-in Watchdog Timer
> Only DC3.3V voltage supply required
Specifications:
> Card
Supported: Memory Stick Card：4MB~128MB
Memory Stick PRO 4bit：256MB~1GB
Secure Digital Card：8MB ~ 1GB
Multi Media Card：8MB ~ 512MB
xD-Picture Card：8MB ~ 512MB
> USB Port Complies with version 2.0 High Speed standard
> Data Transfer Rate: Max Speed @ 480 Mbit/s for USB Bulk Transfer
Memory Stick Card：Read 1430 KB/s, Write 1202KB/s。
Memory Stick PRO：Read 3809 KB/s, Write 2938 KB/s。
Secure Digital Card：Read 3141 KB/s, Write 1168 KB/s。
Multi Media Card：Read 2206 KB/s, Write 2080 KB/s。
xD-Picture Card；Read 6240 KB/s, Write 1211 KB/s、
> Power Supply DC3.3V, supplied by Express Card’s USB port
> Operating Systems: Supported Windows 98/ 98SE/ 2000/ME/XP, Mac OS 9.x,
OS10.x, Linux kernel 2.4 and Red Hat Linux8.0
 |
