Part Number System for Fiber Optic Cables
click here to view
Full Page
Part Numbers Designators
Example: AP0121PNU-ILPA |
Single
Mode |
12 Fibers |
Tight
Buffer |
Tight Buffer
Distribution Plenum |
Interlock Armor Plenum Aluminum |
A |
P |
0 |
1 |
2 |
1 |
P |
N |
U |
ILPA |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Fiber Grade |
Fiber Count |
Buffer Construction |
Series Type |
Suffix |
Note:
> |
Fiber Grade (Position 1, 2)
Pos. 1 & 2 |
Fiber Type |
Corning® Optical Fiber |
Description |
AB |
Bend-Insensitive SM |
SMF-28e+™
Fiber |
Full spectrum with
improved macrobending performance, ITU-T G.652.D and ITU-T G.657.A
|
AL |
Long-Haul SM |
LEAF®
Fiber |
Large Aeff,
low water peak, NZ-DSF Single Mode, ITU-T G.655 |
AP |
Tight Buffer SM |
SMF-28e+™
Fiber |
Full spectrum, low
water peak Single Mode with 900μm PVC buffer, ITU-T G.652.D |
AQ |
Standard Loose Tube SM |
SMF-28e+™
Fiber |
Full spectrum, low
water peak single mode, ITU-T G.652.D |
AT |
Performance Loose Tube
SM |
SMF-28e+™
Fiber |
Full spectrum, high
performance low water peak Single Mode with 0.35/0.25 attenuation,
ITU-T G.652.D |
BB |
Ultra-bendable 50 μm MM |
ClearCurve®
OM4 Fiber |
10 Gb/s < 550 m at 850
nm, OM4* 1 Gb/s < 1100 m at 850 nm |
BC |
Ultra-bendable 50 μm MM |
ClearCurve®
OM3 Fiber |
10 Gb/s < 300 m at 850
nm, OM3* 1 Gb/s < 1000 m at 850 nm |
BE |
50 μm MM |
InfiniCor®
SX+ Fiber |
10 Gb/s < 300 m at 850
nm, OM3* 1 Gb/s < 1000 m at 850 nm |
BI |
50 μm MM |
InfiniCor®
SXi Fiber |
10 Gb/s < 150 m at 850
nm, OM2* 1 Gb/s < 750 m at 850 nm |
BL |
50 μm MM |
InfiniCor®
eSX+ Fiber |
10 Gb/s < 550 m at 850
nm, OM4* 1 Gb/s < 1100 m at 850 nm |
BM |
50 μm MM |
InfiniCor®
eSX+ Fiber |
10 Gb/s < 600 m at 850
nm, OM4* 1 Gb/s < 1100 m at 850 nm |
CG |
62.5 μm MM |
InfiniCor®
300 Fiber |
1 Gb/s < 300 m at 850
nm, OM1* 1 Gb/s < 550 m at 1300 nm |
CL |
62.5 μm MM |
InfiniCor®
CL™
1000 Fiber |
1 Gb/s < 500 m at 850
nm, OM1* 1 Gb/s < 1000 m at 1300 nm |
Note:
- Position
1
A: Single Mode
(sm) B: 50 MM Multimode (mm)
C: 62.5 MM Multimode (mm)
-
Position 2
Fiber Specifications and Grade
- * Designation per ISO 11801
Fiber Standards
- SMF-28e+ is a trademark and
Corning, LEAF, InfiniCor and Plus Corning Optical Fiber are
registered trademarks of Corning Incorporated, Corning, NY,
U.S.A.
|
Multimode Fiber Selection Guide
Optical Characteristics: |
50/125 Family |
62.5/125 Family |
Unit |
OM2
Type
BI |
OM3
Type
BE |
OM4
Type
BL |
OM4
Type
BM |
OM3
Type
BC |
OM4
Type
BB |
OM1
Type
CG |
OM1
Type
CB |
Maximum Finished Cable
Attenuation Coefficient |
@850nm |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0 |
3.5 |
3.5 |
dB/km |
@1300nm |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
dB/km |
Overfill Launch Bandwidth |
@850nm |
700 |
1500 |
1500 |
1500 |
1500 |
1500 |
200 |
200 |
MHz.km |
@1300nm |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
MHz.km |
Laser Bandwidth |
@850nm |
850 |
2000 |
4700 |
5350* |
2000 |
4700 |
220 |
385 |
MHz.km |

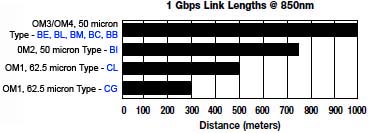

Gigabit Ethernet Link
Length (1 Gbps) |
1000Base-SX (850nm) |
750 |
1000 |
1100 |
1100 |
1000 |
1100 |
300 |
500 |
meters |
1000Base-SX (1300nm) |
550 |
550 |
550 |
550 |
550 |
550 |
550 |
1000 |
meters |

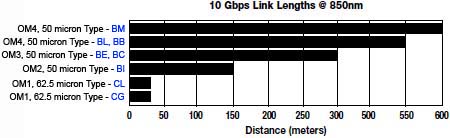

10 Gigabit Ethernet
Length (10 Gbps) |
1000Base-SX (850nm) |
150 |
300 |
550 |
600 |
300 |
550 |
33 |
33 |
meters |
Note:
> * Using 3.0 dB cable
attenuation and 0.7 dB connector allocation
> |


Single Mode Fiber Selection Guide
Fiber Description |
Fiber
Type |
Typical Attenuation (dB/km) |
Gigabit Ethernet
Distance (Meter) |
10 Gigabit Ethernet
Distance (Meter) |
1310nm |
1383nm |
1550nm |
1625nm |
1310nm |
1310nm |
1550nm |
Single Mode
Loose Tube |
Premium |
AQ |
0.40 |
0.40 |
0.30 |
0.35 |
10,000 |
5,000 |
30,000 |
High Performance |
AT |
0.35 |
0.35 |
0.25 |
0.30 |
10,000 |
5,000 |
30,000 |
Single Mode
Tight Buffer |
Super |
AP |
0.65 |
- |
0.65 |
- |
10,000 |
5,000 |
30,000 |
Breakout |
AP |
1.00 |
- |
1.00 |
- |
10,000 |
5,000 |
30,000 |
Note:
> |
Specialty Fibers - Single Mode
Fiber Description |
Fiber
Type |
Typical Attenuation (dB/km) |
Typical Application |
1310nm |
1383nm |
1550nm |
1605nm |
1625nm |
Single Mode (NZDS)
Large Effective Area |
AL |
0.40 |
0.40 |
0.30 |
0.35 |
0.35 |
DWDM |
Single Mode
Bend-Insensitive |
AB |
0.65 |
- |
0.65 |
- |
- |
CWDM |
Note:
> |
Requested Fiber Count (Position 3, 4, 5)
Standard Offerings: 6, 12, 24,
36, 48, 72
Buffer Construction (Position 6)
1) Tight Buffer
3) Single Fiber Loose Tube
(Gel-filled);
4) Multi-Fiber Loose Tube (Gel-Filled);
6) Bare/Ribbon
Note:
2) Quick Strip and
5) Loose Buffer no longer available
Series Type (Position 7, 8, 9)
Outdoor:
-
E1S: Loose Tube TJ
Dual Armor
-
H1A: Loose Tube DJ
-
H1F: Loose Tube DJ
Armored
-
H1S: Loose Tube DJ
Dual Armor
-
M1A: Loose Tube SJ
-
M1F: Loose Tube SJ
Armored
-
M1N: Loose Tube SJ
Armored Self-Supporting
-
M1Y: Loose Tube SJ
Self-Supporting
-
R1A: Loose Tube SJ
Ribbon cable
-
T1S: Triple Jacket
-
U1A: All-Dielectric
Flat Drop Cable
-
U1A.TF: Toneable
Flat Drop Cable
-
U2A: Mini
(Figure-8) Drop Cable
-
UNFC: Compact
Central Loose Tube Drop Cable
-
UNFS: Central Tube
SJ Armored
Indoor:
-
B3D: Tight Buffer
Breakout Plenum
-
B3R: Tight Buffer
Breakout Riser
-
PNR /
P1R: Tight Buffer Distribution
Riser
-
PNU /
P1D: Tight Buffer Distribution Plenum
-
PNZ /
P1Z: Tight Buffer Distribution LSZH
Indoor/Outdoor:
-
ANR /
A1R: Tight Buffer Distribution Riser
-
ANU /
A1D: Tight Buffer Distribution Plenum
-
H1L: Loose Tube DJ
Armored LSZH
-
H1M: Loose Tube DJ
Riser – Chemical-Resistant
-
M1D: Loose Tube SJ
Plenum
-
M1M: Loose Tube
Single Jacket Riser
-
M1Z: Loose Tube SJ
LSZH
-
UNU: Central Tube
SJ Plenum
Specialty:
- GNC: Military Tactical Distribution Cable
Note:
-
DJ = Dual Jacket
-
SJ = Single Jacket
-
TJ = Triple Jacket
Suffixes
-
BK Black Jacket (UV
Resistant)
-
DWB Dry Water Block
Cable Core
-
DT Dry Tube
-
ILP Interlock Armor
Plenum Steel
-
ILPA Interlock Armor
Plenum Aluminum
-
ILPAS Interlock Armor
Plenum Aluminum w/Sub-Units
-
ILPS Interlock Armor
Plenum w/Sub-Units
-
ILR Interlock Armor
Riser Steel
-
ILRA Interlock Armor
Riser Aluminum
-
ILRAS Interlock Armor
Riser Aluminum w/Sub-Units
-
ILRS Interlock Armor
Riser w/Sub-Units
-
RIP Ripcord
|
