General Cable -1PNR, -1P1R Tight Buffer Distribution OFNR Riser Cable CB-FB-TR-xxx1PNRxx, CB-FB-TR-xxx1P1Rxx
click here for
General Cable -1PNR, -1P1R

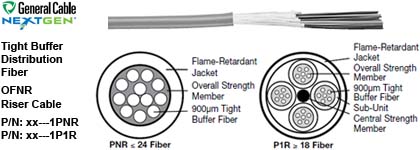

items list Product Construction: Fiber: 2–144 fibers • 900μm tight buffer • Color-coding per TIA/EIA 598B Central Strength Member: Epoxy/glass rod (above 12 fibers) Overall Strength Member: Aramid fiber yarn Jacket: Flame-retardant polyvinyl chloride (PVC) • Sequential footage markings* • Orange jacket—multimode fibers (except 10 Gbps) • Aqua jacket—10 Gbps multimode fibers • Yellow jacket—singlemode fibers Features: Lightweight, flexible design simplifies installation • Tight buffer provides individual fiber protection • Tight buffered fibers are easy to handle and strip for field connectorization • Sub-units are numbered for identification Performance: Temperature: Storage -40˚C (-40˚F) to +70˚C (+158˚F) Operating -20˚C (-4˚F) to +70˚C (+158˚F) • Minimum Bend Radius: 20 X OD—Installation 10 X OD—In-Service • Maximum Crush Resistance: 850 lbs/in (1485 N/cm) • Maximum Vertical Rise— 1,640 ft (500 m) Applications: Intrabuilding voice or data communication backbones • UL Listed Type OFNR for installation in vertical riser and general horizontal applications when installed in accordance with NEC article 770-51 (b) and 770-53 (b) Compliances: UL and c(UL) Listed Type OFNR • CSA FT-4 • ANSI/TIA/EIA 568B.3 • ICEA S-83-596 • GR-409 • RoHS Compliant Directive 2002/95/EC Option: standard on P1Rs * Sequential meter markings available upon request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
