General Cable -1ANR, -1A1R
Tight Buffer Distribution OFNR Riser Cable
Water Block / Flame-Retardant / UV Resistant
CB-FB-TP-xxx1ANRxx, CB-FB-TP-xxx1A1Rxx
click here for
General Cable -1ANR,
-1A1R
items list
click here for
Part Number System
for General Cable Fiber Optic Cable

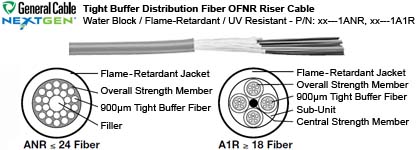

Product Construction:
Fiber:
2144 fibers
900μm tight
buffer
Color-coding per TIA/EIA 598B
Central Strength Member:
Epoxy/glass rod
(above 12 fibers)
Overall Strength Member:
Aramid fiber yarn
Jacket:
UV-resistant black jacket
Flame-retardant polyvinyl chloride (PVC)
Sequential
footage markings*
Option:
Interlock steel or aluminum
(-ILP or -ILPA)
Features:
Dry Water Block cable core for fiber
protection
Improved temperature performance
Direct termination of connectors on tight buffer
Sub-units are numbered for identification
Performance:
Temperature:
Storage -40˚C (-40˚F) to +70˚C (+158˚F)
Operating -40˚C (-40˚F) to +70˚C (+158˚F)
Minimum Bend Radius:
20 X ODInstallation
10 X ODIn-Service
Maximum Crush Resistance:
850 lbs/in (1485 N/cm)
Maximum Vertical Rise1,640 ft (500 m)
Applications:
Intrabuilding and interbuilding voice or
data communication backbones
Outdoor use in ducts and underground conduits
UL Listed Type OFNR for installation in
vertical riser and general horizontal applications when installed in
accordance with NEC
article 770-51 (a) and 770-53 (a)
Compliances:
UL and c(UL) Listed Type OFNR
CSA FT-6
ICEA S-104-696
RoHS Compliant Directive 2002/95/EC
* Sequential meter markings available upon
request
Catalogue
Number |
Fiber
Count |
No. of
Sub-
Units |
Nominal Cable
Diameter |
Nominal Cable
Weight |
Maximum Tensile Load |
|
Installation |
In-Service |
|
inch |
mm |
lbs/1000' |
kg/km |
lbs |
N |
lbs |
N |
|
xx0021ANR.BK |
2 |
- |
0.19 |
5 |
14 |
20 |
300 |
1334 |
90 |
400 |
|
xx0041ANR.BK |
4 |
- |
0.20 |
5 |
16 |
24 |
320 |
1423 |
96 |
427 |
|
xx0061ANR.BK |
6 |
- |
0.22 |
6 |
18 |
27 |
320 |
1423 |
96 |
427 |
|
xx0081ANR.BK |
8 |
- |
0.22 |
6 |
20 |
30 |
320 |
1423 |
96 |
427 |
|
xx0101ANR.BK |
10 |
- |
0.24 |
6 |
23 |
34 |
400 |
1780 |
120 |
534 |
|
xx0121ANR.BK |
12 |
- |
0.25 |
6 |
24 |
36 |
400 |
1780 |
120 |
534 |
|
xx0181ANR.BK |
18 |
- |
0.33 |
8 |
45 |
67 |
320 |
1425 |
112 |
500 |
|
xx0241ANR.BK |
24 |
- |
0.34 |
9 |
47 |
70 |
320 |
1425 |
112 |
500 |
|
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
xx0181A1R.BK |
18 |
3 |
0.47 |
12 |
79 |
118 |
750 |
3336 |
250 |
1112 |
|
xx0241A1R.BK |
24 |
4 |
0.53 |
13 |
86 |
128 |
1000 |
4448 |
300 |
1334 |
|
xx0361A1R.BK |
36 |
6 |
0.66 |
17 |
147 |
219 |
1300 |
5783 |
390 |
1735 |
|
xx0481A1R.BK |
48 |
4 |
0.64 |
16 |
137 |
204 |
1300 |
5783 |
390 |
1735 |
|
xx0601A1R.BK |
60 |
5 |
0.70 |
18 |
168 |
250 |
1500 |
6672 |
450 |
2002 |
|
xx0721A1R.BK |
72 |
6 |
0.77 |
20 |
207 |
308 |
1900 |
8452 |
570 |
2535 |
|
xx0961A1R.BK |
96 |
8 |
0.91 |
23 |
289 |
430 |
2000 |
8896 |
670 |
2980 |
|
xx1201A1R.BK |
120 |
10 |
1.02 |
26 |
313 |
466 |
3000 |
13345 |
1000 |
4448 |
|
xx1441A1R.BK |
144 |
12 |
1.02 |
26 |
314 |
467 |
3000 |
13345 |
1000 |
4448 |
|
Note:
> XX denotes glass type. |
|
