General Cable -1PNU, -1P1D Tight Buffer Distribution OFNP Plenum Cable CB-FB-TP-xxx1PNUxx, CB-FB-TP-xxx1P1Dxx
click here for
General Cable -1PNU,
-1P1D

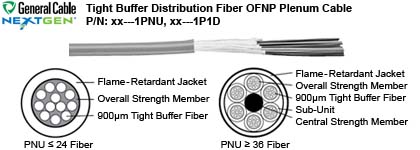

items list Product Construction: Fiber: 2–96 fibers • 900μm tight buffer • Color-coding per TIA/EIA 598B Central Strength Member: Epoxy/glass rod (above 12 fibers) Overall Strength Member: Aramid fiber yarn Jacket: Flame-retardant polyvinyl chloride (PVC) or fluoropolymer • Sequential footage markings* • Orange jacket—multimode fibers (except 10 Gbps) • Aqua jacket—10 Gbps multimode fibers • Yellow jacket—singlemode fibers Features: Lightweight, flexible design simplifies installation • Tight buffer provides individual fiber protection • Tight buffered fibers are easy to handle and strip for field connectorization • Sub-units are numbered for identification Performance: Temperature: Storage -40˚C (-40˚F) to +70˚C (+158˚F) Operating -20˚C (-4˚F) to +70˚C (+158˚F) • Minimum Bend Radius: 20 X OD—Installation 10 X OD—In-Service • Maximum Crush Resistance: 850 lbs/in (1485 N/cm) • Maximum Vertical Rise— 1,640 ft (500 m) Applications: Intrabuilding voice or data communication backbones • UL Listed Type OFNP for installation in ducts, plenums and other spaces used as environmental air returns when installed in accordance with NEC article 770-51 (a) and 770-53 (a) Compliances: UL and c(UL) Listed Type OFNP • CSA FT-6 • ANSI/TIA/EIA 568B.3 • ICEA S-83-596 • GR-409 • RoHS Compliant Directive 2002/95/EC Option: standard on P1Ds * Sequential meter markings available upon request
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
