General Cable -1ANU, -1A1D
Tight Buffer Distribution OFNP Plenum Cable
Water Block / Flame-Retardant / UV Resistant
CB-FB-TP-xxx1ANUxx, CB-FB-TP-xxx1A1Dxx
click here for
General Cable -1ANU,
-1A1D
items list
click here for
Part Number System
for General Cable Fiber Optic Cable

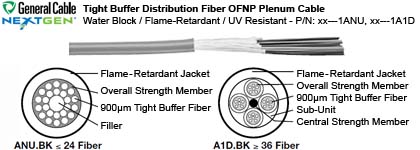

Product Construction:
Fiber:
296 fibers
900μm tight
buffer
Color-coding per TIA/EIA 598B
Central Strength Member:
Epoxy/glass rod
(above 12 fibers)
Overall Strength Member:
Aramid fiber yarn
Jacket:
Flame-retardant
polyvinyl chloride (PVC) or fluoropolymer
Flame-retardant
polymer
Sequential
footage markings*
Option:
Interlock steel or aluminum
(-ILP or -ILPA)
Features:
Dry Water Block cable core for fiber
protection. Improved temperature performance
Direct termination of connectors on tight
buffer. Sub-units are numbered for identification
Performance:
Temperature:
Storage -40˚C (-40˚F) to +70˚C (+158˚F)
Operating -40˚C (-40˚F) to +70˚C (+158˚F)
Minimum Bend Radius:
20 X ODInstallation
10 X ODIn-Service
Maximum Crush Resistance:
850 lbs/in (1485 N/cm)
Maximum Vertical Rise1,640 ft (500 m)
Applications:
Intrabuilding and interbuilding voice or
data communication backbones
Outdoor use in ducts and underground conduits
UL Listed Type OFNP for installation in
vertical riser and general horizontal applications when installed in
accordance with NEC
article 770-51 (a) and 770-53 (a)
Compliances:
UL and c(UL) Listed Type OFNP
CSA FT-6
ICEA S-104-696
RoHS Compliant Directive 2002/95/EC
Catalogue
Number |
Fiber
Count |
No. of
Sub-
Units |
Nominal Cable
Diameter |
Nominal Cable
Weight |
Maximum Tensile Load |
|
Installation |
In-Service |
|
inch |
mm |
lbs/1000' |
kg/km |
lbs |
N |
lbs |
N |
|
xx0021ANU.BK |
2 |
- |
0.171 |
4.3 |
11.7 |
17.4 |
300 |
1334 |
90 |
400 |
|
xx0041ANU.BK |
4 |
- |
0.181 |
5.6 |
13.7 |
20.4 |
320 |
1423 |
96 |
427 |
|
xx0061ANU.BK |
6 |
- |
0.195 |
5.9 |
16.0 |
23.8 |
320 |
1423 |
96 |
427 |
|
xx0081ANU.BK |
8 |
- |
0.205 |
5.2 |
18.0 |
26.8 |
320 |
1423 |
96 |
427 |
|
xx0101ANU.BK |
10 |
- |
0.221 |
5.6 |
20.7 |
30.8 |
400 |
1780 |
120 |
534 |
|
xx0121ANU.BK |
12 |
- |
0.227 |
5.8 |
22.7 |
33.8 |
400 |
1780 |
120 |
534 |
|
xx0181ANU.BK |
18 |
- |
0.310 |
8.0 |
42.0 |
63 |
320 |
1423 |
112 |
500 |
|
xx0241ANU.BK |
24 |
- |
0.320 |
8.0 |
45.0 |
67 |
320 |
1423 |
112 |
500 |
|
xx0361A1D.BK |
36 |
6 |
0.610 |
15.5 |
151 |
225 |
1300 |
5783 |
390 |
1735 |
|
xx0481A1D.BK |
48 |
4 |
0.582 |
14.8 |
135 |
200 |
1300 |
5783 |
390 |
1735 |
|
xx0601A1D.BK |
60 |
5 |
0.670 |
17.0 |
186 |
277 |
1500 |
6672 |
450 |
2002 |
|
xx0721A1D.BK |
72 |
6 |
0.730 |
18.5 |
217 |
323 |
1900 |
8452 |
570 |
2535 |
|
xx0961A1D.BK |
96 |
8 |
0.860 |
21.8 |
312 |
464 |
2000 |
8896 |
670 |
2980 |
|
Note:
> XX denotes glass type. |
|
