Corning Cable Systems MIC® Interlocking Armored Riser Cables are standard OFNR MIC Riser Cables designed for use in riser and general purpose environments for intrabuilding backbone and horizontal installations. They use individually jacketed TBII Buffered Fibers enabling easy, consistent stripping and facilitating termination.

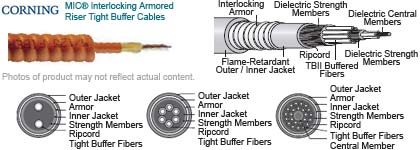

The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. This core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and over seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.

Offered in 50 μm, 62.5 μm, single-mode and hybrid versions, these cables meet the application requirements of the National Electrical Code® (NEC®) and are OFCR and FT-4 listed. These cables also meet ICEA S-83-596 test criteria and are available with Gigabit Ethernet and 10 Gigabit Ethernet performance.

• Aluminum interlocking armor - Seven times crush protection compared to unarmored

• TBII® Buffered Fibers - Easy, consistent stripping

• Flame-retardant jacket - Rugged and durable

• Temperatures Storage: -40° to +70°C (-40° to +158°F)
  Installation: -10° to +60°C (+14° to +140°F)
  Operation: -20° to +70°C (-4° to +158°F)

• Approvals and Listings
  National Electrical Code® (NEC®) OFCR, CSA FT-4, ICEA S-83-596

• Flame Resistance
  UL-1666 (for riser, and general building applications)

Corning Cable Systems recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results.

Fiber Count	Inner Cable O.D.		Armored Cable O.D.		Total Weight		Max. Tensile Loads				Min. Bend Radius
					kg / 1000m	lb / 1000ft	Short-Term		Long-Term		Load		Installed
	mm	inch	mm	inch			N	lbf	N	lbf	cm	inch	cm	inch
2	4.7	0.19	11.9	0.47	114	77	660	150	200	45	17.9	7.0	11.9	4.7
4	5.0	0.20	11.9	0.47	117	79	660	150	200	45	17.9	7.0	11.9	4.7
6	5.5	0.22	11.9	0.47	121	81	660	150	200	45	17.9	7.0	11.9	4.7
8	6.0	0.24	11.9	0.47	128	86	660	150	200	45	17.9	7.0	11.9	4.7
12	6.3	0.25	12.6	0.50	135	191	660	150	200	45	18.9	7.4	12.6	5.0
18	7.4	0.29	13.7	0.54	162	109	1320	300	400	90	20.6	8.1	13.7	5.4
24	8.0	0.31	15.0	0.59	183	123	1320	300	400	90	22.5	8.9	15.0	5.9

Transmission Performance

Fiber Code	LANscape® 62.5 Solution	LANscape® Pretium® 150 Solution	LANscape® Pretium® 300 Solution	LANscape® Pretium® 550 Solution	LANscape® Pretium® 600 Solution	Single Mode
	K	T	T	T	T	E
Performance Option Code	30	31	80	90	91	31
Fiber Type	62.5 Multimode	50 Multimode	50 Multimode	50 Multimode	50 Multimode	*** Single Mode
ISO/IEC 11801 Nomenclature	OM1	OM2	OM3 ***	OM4 ***	OM4 ***	OS2
Wavelength (nm)	850/1300	850/1300	850/1300	850/1300	850/1300	1310/1383/1550
Max. Attenuation (dB/km)	3.4/1.0	3.0/1.0	3.0/1.0	3.0/1.0	3.0/1.0	0.65/0.65/0.50
Min. Over Filled Launch (OFL) Bandwidth (MHz-km)	200/500	700/500	1500/500	3500/500	3500/500	- / - / -
Min. Effective Modal Bandwidth (EMB) (MHz-km)	220/ -	950/ -	2000/ -	4700/ -	5350/ -	- / - / -
Serial 1 Gigabit Ethernet Distance (m)	300/550	750/600	1000/600	1000/600	1000/600	5000/ - / -
Serial 10 Gigabit Ethernet Distance (m)	33/ -	150/ -	300/ -	550 */ -	600 **/ -	10000/-/40000
Note * Assumes 1.0 dB maximum total connector/splice loss. ** Assumes 0.7 dB maximum total connector/splice loss. *** Meets 0.75 ns optical skew when used in all Corning Cable Systems Plug & Play™ Systems solutions. **** ITU 652.D compliant.

Notes:

1. Improved attenuation and bandwidth options available.

2. Bend-insensitive single-mode fibers available on request.

3. Contact a Corning Cable Systems Customer Service Representative for additional information.

4. 50 μm multimode fiber macrobend loss ≤ 0.2 dB at 850 nm for two turns around 7.5 mm radius mandrel.
