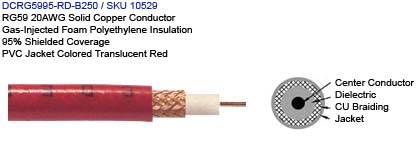

RG59 Coax Cable DCRG5995-RD-B250
RG59 20AWG Solid Copper Conductor
Gas-Injected Foam Polyethylene Insulation
95% Shielded Coverage
PVC Jacket Translucent Red
CB-RG59-xxx

Products Family:

Home Network Coaxial Cable 3 GHTZ 95% Shield Solid Copper RG59

  • Product Number: DCRG59
  • UL Style: UL : CM
  • Cable Style: Series 59 Coaxial Cable
  • Description & Standards: 20 AWG solid copper conductor, gas-injected foam polyethylene insulation, 95% coverage, PVC Jacket

PHYSICAL CHARACTERISTICS:

  • No. of Coaxial: 1
  • Series Type: RG59
  • Conductor Size and Material: 20 AWG, 0.032", (0.81 mm) Solid Copper
  • Insulation: Gas Injected Foam PE,  O.D. - 0.146" (3.71 mm)
  • Shielding: Solid Copper, 95% coverage
  • Outer Jacket: PVC, O.D. - 0.236" (6.0 mm)

ELECTRICAL CHARACTERISTICS:

  • Nom. Impedance: 75 W + 3
  • Nom. Inductance: 0.098 mH/ft
  • Nom. Capacitance: 16.3 pF/ft
  • Nom. DC Resistance: Conductor - 10.39W/1000ft
  • Shielding -   6.22W/1000ft
  • Nom Velocity of Prop.: 83%
  • Propagation Delay: 1.28 ns/ft

Performance:

Frequency
(MHz)		  Attenuation
(dB/100 ft)		 Attenuation
(dB/100 ft) Max		  Structural
Return Loss (dB)
5 0.56 0.58 29.20
55 1.86 1.93 26.00
100 2.53 2.61 27.70
211 3.65 3.75 32.30
250 3.98 4.11 29.10
270 4.12 4.30 27.80
300 4.36 4.55 26.30
330 4.58 4.73 30.50
350 4.72 4.89 30.80
400 5.06 5.29 29.10
450 5.36 5.61 32.50
500 5.65 5.90 33.10
550 5.96 6.16 26.60
600 6.21 6.50 21.10
750 7.01 7.32 25.80
870 7.58 7.95 26.00
950 7.91 8.30 29.90
1000 8.12 8.52 21.00
1200 8.89 9.28 20.30
1450 9.78 10.16 25.10
1750 10.77 11.20 19.70
2050 11.70 12.11 18.00
2250 12.26 12.61 18.20
2500 12.93 13.31 18.90
2700 13.43 13.85 17.80
3000 14.16 14.51 18.20

Print Legend:

DCxxxxxx RG59 3GHTZ  TESTED  20AWG  95%  BRAID  PVC  COAX  CABLE  HDTV CM  c(UL)us  E175524 date >footage < DEVICE A B C D E F ZONE 0 1 2 3 4 5 6 7 8 9

Package & Color:

  • DCRG5995-YL-B250
    • SKU: 10531
    • Color: Transparent Yellow
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-BL-B250
    • SKU: 10528
    • Color: Transparent Blue
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-BL-S1K
    • SKU: 4945
    • Color: Blue
    • Length: 1000 ft.
    • Package: Wooden Spool
    • Shipping Weight (lbs): 32
    • Package Dimensions: 11.1x 1.1x 1.3 in
  • DCRG9559-BL-B1K
    • SKU: 9624
    • Color: Blue
    • Length: 1000 ft.
    • Package: Reelex Box
    • Shipping Weight (lbs): 31
    • Package Dimensions: 15.8x15.8x15.8 in
  • DCRG5995-BK-B250
    • SKU: 10533
    • Color: Transparent Black
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-GN-B250
    • SKU: 10530
    • Color: Transparent Green
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-RD-B250
    • SKU: 10529
    • Color: Transparent Red
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-WH-B250
    • SKU: 10532
    • Color: Transparent White
    • Length: 250 ft.
    • Package: Reel-in-Box
    • Shipping Weight (lbs): 9
    • Package Dimensions: 13.0x13.0x5.6 in
  • DCRG5995-BK-S1K
    • SKU: 12469
    • Color: Black
    • Length: 1000 ft.
    • Package: Wooden Spool
    • Shipping Weight (lbs): 32
    • Package Dimensions: 11.1x11.1x11.3 in
