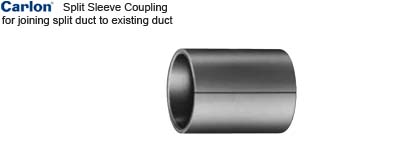

Part Numbers:

Part Number	Description	Length
E200JS6	Schedule 40 & 80 Split Coupling 2"	6"
E200KS7	Schedule 40 & 80 Split Coupling 2-1/2"	7"
E200LS7	Schedule 40 & 80 Split Coupling 3"	7"
E200LSS	Schedule 40 & 80 Split Coupling 3"	6.5"
E200MS8	Schedule 40 & 80 Split Coupling 3-1/2"	8"
E200NS8	Schedule 40 & 80 Split Coupling 4"	8"
E200NSS	Schedule 40 & 80 Split Coupling 4"	6"
E200PS8	Schedule 40 & 80 Split Coupling 5"	8"
E200PS9	Schedule 40 & 80 Split Coupling 5"	9"
E200RS1	Schedule 40 & 80 Split Coupling 6"	10"
E900NS8 (White)	C Duct Split Coupling 4"	8"
E900NSW (White)	C Duct Split Coupling 4"	6"

Note:

• Schedule 40:
  Listed for underground applications encased in concrete or direct burial. Also for use in exposed or concealed applications aboveground.
• Schedule 80:
  Listed for use in aboveground and belowground applications that are subject to physical damage.
• C Duct:
  Type C is designed for direct burial or concrete encased applications.
