Carlon Split Duct

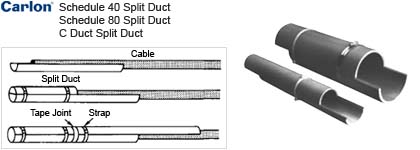

Carlon Split Duct is the fast and easy way to repair broken ductwork without the costly cutting and resplicing of your conductors. Carlon's unique tongue-and-groove design leads the industry in providing a strong, rigid solution for duct repair situations. The interlocking design allows the split duct sections to be staggered and butted together. Joints may be sealed with tape and reinforced with plastic or metallic straps to produce a rigid, stable unit. Manufactured from a compound designed specifically for power and telecommunications applications, Carlon Split Duct exhibits superior impact strength and ultraviolet resistance. Available in 2" through 6" diameters, this product line also contains couplings and sweeps necessary to complete the system.

Part Numbers:

Part Number Description O.D. (in)
49011SD-010 Schedule 40 Split Duct 2" 2.375
49012SD-010 Schedule 40 Split Duct 2-1/2" 2.875
49013SD-010 Schedule 40 Split Duct 3" 3.500
49014SD-010 Schedule 40 Split Duct 3-1/2" 4.000
49015SD-010 Schedule 40 Split Duct 4" 4.500
49016SD-010 Schedule 40 Split Duct 5" 5.563
49017SD-010 Schedule 40 Split Duct 6" 6.625
49411SD-010 Schedule 80 Split Duct 2" 2.375
49415SD-010 Schedule 80 Split Duct 4" 4.500
68515SD-010 C Duct Split Duct 4" 4.350

Note:

  • Schedule 40:
    Listed for underground applications encased in concrete or direct burial. Also for use in exposed or concealed applications aboveground.
  • Schedule 80:
    Listed for use in aboveground and belowground applications that are subject to physical damage.
  • C Duct:
    Type C is designed for direct burial or concrete encased applications.
