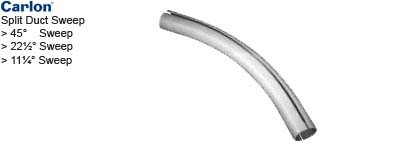

Carlon Split Duct Sweep
45° Sweep
22½° Sweep
11¼° Sweep
WDS-CL-xxx
Links:
Part Numbers:
|
Part Number |
Segment |
Nom. Size |
Radius |
|
UA7DJSD |
45° Sweep |
2" |
24" |
|
UA7FJSD |
45° Sweep |
2" |
36" |
|
UA7FLSD |
45° Sweep |
3" |
36" |
|
UA7HJSD |
45° Sweep |
2" |
48" |
|
UA7HLSD |
45° Sweep |
3" |
48" |
|
UA7IJSD |
45° Sweep |
2" |
60" |
|
UA7ILSD |
45° Sweep |
3" |
60" |
|
UA7INSD |
45° Sweep |
4" |
60" |
|
UA5INSD |
22½° Sweep |
4" |
60" |
|
UA3IJSD |
11¼° Sweep |
2" |
60" |
|
UA3ILSD |
11¼° Sweep |
3" |
60" |
|
UA3INSD |
11¼° Sweep |
4" |
60" |
Two 45° Elbows may be segmented for 90°.
|
