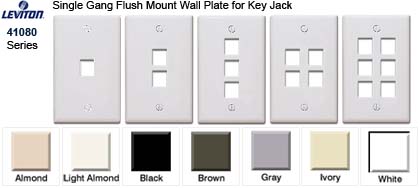

Flush Mount Wall Plate Single Gang
for Keystone Jack (Keyjack, Key-Jack)
Leviton 41080 Series
QuickPort Wallplate
WP-KS-LV41080-xxx


Products Family:
(41080-1*P, -2*P, -3*P, -4*P, -6*P)
>
1-port - 41080-1AP, 41080-1BP, 41080-1EP, 41080-1GP, 41080-1IP, 41080-1TP, 41080-1WP
> 2-port - 41080-2AP, 41080-2BP, 41080-2EP, 41080-2GP, 41080-2IP, 41080-2TP, 41080-2WP
> 3-port - 41080-3AP, 41080-3BP, 41080-3EP, 41080-3GP, 41080-3IP, 41080-3TP, 41080-3WP
> 4-port - 41080-4AP, 41080-4BP, 41080-4EP, 41080-4GP, 41080-4IP, 41080-4TP, 41080-4WP
> 6-port - 41080-6AP, 41080-6BP, 41080-6EP, 41080-6GP, 41080-6IP, 41080-6TP, 41080-6WP
Note: * - A (Almond), B (Blue), E (Black), G (Gray), I (Ivory), T (Light Almond), W (White)

Product Features:
> Type: Standard
> Gang: 1
> Ports: 1, 2, 3, 4, or 6
> Material: High-Impact Plastic
> Mount: Box
> Standards and Certifications: UL/CSA

Features and Benefits:

> Field-configurable wallplates accept QuickPort snap-in modules to support multimedia applications
> Use where a single-gang, economical flush-mount housing is desired
> Color-matched wallplate screws
> Fits within minimum rectangular NEMA openings

>
Compatible with all individual QuickPort snap-in modules
> Individual-port configurability allows specification flexibility
> Narrow module width allows high port density in a small area
> Put blanks in unused ports for future expansion
> Available in 1, 2, 3, 4, or 6 port versions
> Six color choices; Ivory, White, Gray, Black, Almond and Brown

Mechanical Specifications:
> Type: Standard
> Gang: 1
> Ports: 1, 2, 3, 4, or 6
> Mount: Box

Material Specifications
> Material: High-Impact Plastic

Environmental Specifications:
> Flammability: UL94V-O

Standards And Certifications:
> UL: Listed
> CSA: Certified
> NEC: Article 800 Compliant
> TIA/EIA: 568-B Compliant
