Cyber Power (
CyberPower ) UPS Battery Backup Systems
AVR (Automatic Voltage Regulator) built-in
Office
Power CP-1500AVR (CP1500AVR, CPS1500AVR)
1500VA,
950W, 1800-Joule, Runtime 65 ~ 138 Minutes

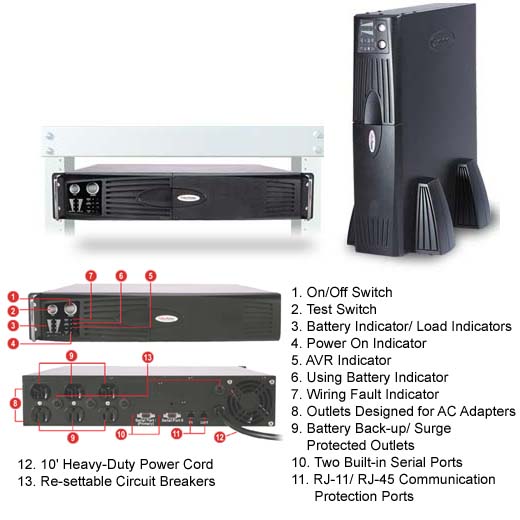

19-inch Rack Mount or Stand Alone
Automatic Voltage Regulator
The 1500AVR model has an innovative form
that allows the unit to be used as either a free-standing unit, or to be
rack mounted. The unit features 2 built in serial ports to allow for
control of two computers during a power failure. This model features
Automatic Voltage Regulation to insure that your connected equipment
receives only regulated, consistent power. The battery-pack has four (4)
7AH batteries for extended runtime and is hot-swappable to minimize
downtime. This model is ideal for corporate servers, departmental servers,
Unix servers, as well as mission-critical network components
Features & Benefits
> Battery Run-times from 65 to 135 minutes
>
Innovative Design Allows Rack-mount or Stand-up Usage
>
Automatic Voltage Regulation Controls over-voltages, blackouts and
brownouts
> All
outlets are surge-protected at 1800 joules
>
PowerPanel Plus™ Software saves your open files and automatically shuts
down your computer when power is lost
>
Contains Hot-swappable Battery Pack with four 7AH Batteries for Extended
Run-Times.
Cyber Power™ Battery
Back-up Systems
CyberPower's
OfficePower™ 1500 Battery Back-up System not only guards
against surges and spikes, but will also step up low voltages or step down
high voltage conditions to safe output levels without resorting to battery
power. The OfficePower 1500AVR also protects your computer system and
valuable data during a power outage.
PowerPanel Plus ™ Software
> Saves open files and
applications and automatically shuts down your computer when a power
outage occurs.
> Provides monitoring of
input voltage, output voltage, battery capacity, load and temperature.
> > Allows for user-defined
scheduled shutdown and startup of computer system.
Technical Specification
> Model: CPS1500AVR
> VA Rating: 1500VA
> Watts: 950W
> Input Voltage on Utility: 85v -150v
> Frequency on Utility: 47Hz to 63Hz
> Output Voltage on Battery: 120V +/- 5%
> Frequency on Battery: 60 Hz
> Surge Energy Capacity: 1800 Joules
> Maximum Surge Current: 36,000 Amps
> Overload Protection: Internal circuitry limiting. On-line circuit
breaker
> Battery Run-time: 65-135 minutes
> Typical Battery Recharge Time: 8 hours
> Total number of receptacles: 6 battery / surge
> Visual Indicators:
Power On/Off, AVR, Wiring Fault, Using Battery, Load, Battery Level
> Audible Indicators: Battery on, Low battery, UPS overload
> Conformance Approvals: UL 1778, cUL, FCC Doc Class B
> Included Software: PowerPanelPlus™ Power Management Software
> Unit Dimensions:
Length 15.25" Width 17.5" Height 3.5" (2U)
|
