Cyber Power ( CyberPower ) UPS Battery Backup Systems

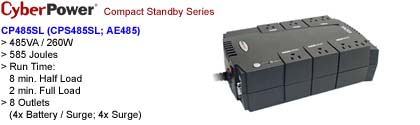

CP485SL (CP-485SL, CPS485SL, AE485)
485VA, 260W, 585-Joule, Runtime 2~8 Minutes
UPS-CP-485SL


The CP485SL Home and Office Series Uninterruptable Power Source (UPS) is perfect power protection for individuals running a stand-alone PC in their home or office. It includes PowerPanel PE ™ Power Management software which monitors the vitals of the battery backup system and will safely shutdown your computer in case of a power outage. Composite IC circuitry offers advanced lightning protection and also guards against surges, spikes, sags, brownouts and other power abnormalities. This rugged unit is equipped with a RJ11 port which protects against surges from phone or network disruptions. The small footprint design is ideal for horizontal or vertical placement, and is even designed for wall-mountability. The unit is also perfect for protecting other electronics such as monitors, printers, scanners, speakers, fax machines, CD/DVD players, and iPods.

Features
> EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
> Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
> USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
> PowerPanel PE ™ Smart Management Software – In event of a power outage, PowerPanel PE will not only save your open files and will also “Hibernate” your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPS’s status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
> LED Indicators - LED status lights indicate Power-On and wiring faults.
> Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery.
> Convenient Mounting – Multiple mounting options: horizontal, vertical, cabinet, and wall.
> Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
> ISO & Safety Certifications - All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.
> Windows Vista ™ Compliant - Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista.
> Identical Model #’s: CP485SL, AE485

Technical Specifications

General
> UPS Type: Standby
Input
> Voltage: 100Vac - 140Vac
> Frequency: 60Hz +/- 3 Hz
> Plug Type: NEMA 5-15P
> Plug Style: Right angle
Output
> VA: 485
> Watts: 260
> On Battery Voltage: 120Vac +/- 5%
> On Battery Frequency: 60Hz
> On Battery Waveform: Simulated sine wave
> Outlet Type: NEMA 5-15R
> Battery / Surge Protection Outlets: 4
> Surge Protection Outlets: 4
> Transformer Spaced Outlets: 4
> Overload Protection: Internal circuitry limiting / circuit breaker
> Transfer Time: 4ms

Battery

> Runtime at Half Load (min): 8
> Runtime at Full Load (min): 2
> Battery Type: Sealed lead acid
> User replaceable: Yes
> Typical Recharge Time: 8 Hours
Surge Protection and Filtering
> Surge Supression: 585 Joules
> Maximum Surge Current: 36,000 Amps
> Phone Protection RJ11: 1 in, 2 out

Management & Communications
> USB Port: Yes
> Serial Port: Yes
> Management Cable: USB adapter
> LED Indicators: Power on, wiring fault
> Audible Alarms: On battery, low battery, overload
> Software: PowerPanel
Physical
> Dimensions (in): 10 3/4" x 6 1/2" x 3 1/2"
> Keyhole Mounting Slots: Yes

Environmental
> Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
> Operating Humidity: 0% - 95% non condensing
Certifications
> Certifications: UL1778, cUL 107.1, FCC DOC Class B
