Cyber Power ( CyberPower ) UPS Battery Backup Systems

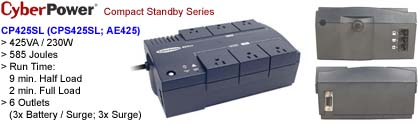

CP425SL (CP-425SL, CPS425SL, AE425)
425VA, 230W, 585-Joule, Runtime 2~9 Minutes
UPS-CP-425SL


The CPS425SL Home and Office Series UPS system is perfect power protection for individuals running a stand-alone PC in their home or office. It includes PowerPanel ™ Power Management software which monitors the vitals of the CyberPower battery backup system and will safely shut down your system in case of a power outage. Composite IC circuitry offers advanced lightning protection and also guards against surges, spikes, sags, brownouts and other power abnormalities. This rugged unit is equipped with a RJ11 port which protects against surges from phone or network disruptions. The unit is also perfect for protecting other electronics such as monitors, printers, scanners, speakers, fax machines, CD/DVD players, and iPods.

Features
> EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
> Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
> PowerPanel ™ Power Management Software – In the event of a power outage, PowerPanel will safely save and close your open files and shut your computer down in an orderly, intelligent manner. It also features adjustable battery run times, popup warning messages, event logging, and scheduled shutdowns.
> LED Indicators - LED status lights indicate Power-On and wiring faults.
> Audible Alarms - Audible tones identify when the unit is running off of battery power, unit overloads and low battery.
> Convenient Mounting – Multiple mounting options: horizontal, vertical, cabinet, and wall.
> Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
> ISO & Safety Certifications - All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.
> Identical Model #’s: AE425, CPS425SL

Technical Specifications

General
> UPS Type: Standby
Input
> Voltage: 100Vac - 140Vac
> Frequency: 60Hz +/- 3 Hz
> Plug Type: NEMA 5-15P
> Plug Style: Right angle
Output
> VA: 425
> Watts: 230
> On Battery Voltage: 120Vac +/- 5%
> On Battery Frequency: 50/60Hz +/- .5%
> On Battery Waveform: Simulated sine wave
> Outlet Type: 2 conductor
> Battery / Surge Protection Outlets: 3
> Surge Protection Outlets: 3
> Transformer Spaced Outlets: 6
> Overload Protection: Internal circuitry limiting / circuit breaker
> Transfer Time: 4ms

Battery

> Runtime at Half Load (min): 9
> Runtime at Full Load (min): 2
> Battery Type: Sealed lead acid
> Typical Recharge Time: 8 Hours
Surge Protection and Filtering
> Surge Supression: 585 Joules
> Maximum Surge Current: 36,000 Amps
> Phone Protection RJ11: 1 in, 2 out

Management & Communications
> Serial Port: Yes
> Management Cable: Serial cable, USB adapter
> LED Indicators: Power on, wiring fault
> Audible Alarms: On battery, low battery, overload
> Software: PowerPanel
Physical
> Dimensions (in): 9 7/8" x 6 3/16" x 3 1/8"
Environmental
> Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
> Operating Humidity: 0% - 95% non condensing
Certifications
> Certifications: UL1778, cUL, FCC DOC Class B
