Cyber Power ( CyberPower ) UPS Battery Backup Systems

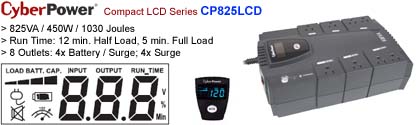

Compact LCD Series CP825LCD
 825VA, 450W, 1030-Joule, Runtime 5~12 Minutes
The CP825LCD Home and Office Series UPS is ideal power protection for individuals running a stand-alone PC in their home or office. Real-time system vitals can be viewed from the Intelligent Crystal-Blue LCD display, and the unit can be conveniently mounted in a workstation cabinet or directly on the desktop. LCD diagnostics include Input Voltage Level, Output Voltage Level, Battery Capacity, Runtime, Load Level, On Battery, Overload, Wiring Fault, and Silent Mode. It also includes PowerPanel PE ™ Power Management software which monitors the vitals of the UPS and will safely shutdown your system in case of a power outage. Composite IC circuitry offers advanced lightning protection and also guards against surges, spikes, sags, brownouts and other power abnormalities. This rugged unit is equipped with a RJ11/45 port which protects against surges from phone, modem, network, and broadband disruptions. The small footprint design is ideal for horizontally or vertically placement, and is even designed for wall-mountability. A HID compliant USB port allows for connectivity of both PC and Mac systems. The unit is also perfect for protecting other electronics such as monitors, printers, scanners, speakers, fax machines, CD/DVD players, and iPods.

Features
> Intelligent LCD Diagnostic Display - The innovative front panel LCD can be used to display detailed information on the UPS status and current power conditions. The LCD displays 9 different diagnostics: Input voltage level, Output voltage level, Battery capacity, Runtime estimate, Load level, On battery, Overload, Fault Condition, and Silent mode.
> EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
> Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
> USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
> PowerPanel PE ™ Smart Management Software – In event of a power outage, PowerPanel PE will not only save your open files and will also “Hibernate” your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPS’s status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
> LED Indicators - LED status lights indicate Power-On and wiring faults.
> Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery.
> Convenient Mounting – Multiple mounting options: horizontal, vertical, cabinet, and wall.
> Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
> ISO & Safety Certifications - All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.
> Windows Vista ™ Compliant - Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista.

Technical Specifications

General
> UPS Type: Standby
Input
> Voltage: 100Vac - 140Vac
> Frequency: 60Hz +/- 3 Hz
> Plug Type: NEMA 5-15P
> Plug Style: Right angle
> Cable Length: 6'
Output
> VA: 825
> Watts: 450
> On Battery Voltage: 120Vac +/- 5%
> On Battery Frequency: 60Hz
> On Battery Waveform: Simulated sine wave
> Outlet Type: NEMA 5-15R
> Battery / Surge Protection Outlets: 4
> Surge Protection Outlets: 4
> Transformer Spaced Outlets: 4
> Overload Protection: Internal circuitry limiting / circuit breaker
> Transfer Time: 4ms
Battery
> Runtime at Half Load (min): 12
> Runtime at Full Load (min): 5
> Battery Type: Sealed lead acid
> Typical Recharge Time: 8 Hours
Surge Protection and Filtering
> Surge Supression: 1030 Joules
> Maximum Surge Current: 36,000 Amps
> Phone / Ethernet RJ11 / RJ45: 1 in, 1 out Combo
Management & Communications
> USB Port: Yes
> USB HID Compliant UPS: Yes
> Management Cable: USB Cable
> LED Indicators: Power on, wiring fault
> Audible Alarms: On battery, low battery, overload
> Software: PowerPanel Personal Edition
> LCD Display: Yes
Physical
> Dimensions (in): 11 1/2" x 6 1/2" x 3 1/2"
> Weight (lbs): 15
> Keyhole Mounting Slots: Yes
Environmental
> Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
> Operating Humidity: 0% - 95% non condensing
Certifications
> Certifications: UL1778, cUL 107.1, FCC DOC Class B
