Cyber Power ( CyberPower ) UPS Battery Backup Systems
AVR Tower Series (Automatic Voltage Regulator) built-in

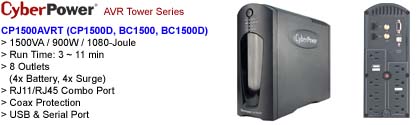

CP-1500AVRT (CP1500AVRT, CP1500D, BC1500, BC1500D)
1500VA, 900W, 1080-Joule, Runtime 3~11 Minutes
UPS-CP-AVR-1500T

Overview:
The CyberPower Systems CP1500AVRT UPS offers advanced power protection in a sleek and rugged tower. Automatic Voltage Regulation (AVR) ensures that all your electronics are receiving clean and stable AC power. Designed for mid-level to upper-level computer systems, the CP1500AVRT guards against surges/spikes, and also offers battery backup in the event of brownouts or total power loss. If your PC is unattended, PowerPanel PE ™ Power Management software will automatically save and close open files and also shutdown the computer system in an intelligent and orderly manner. The CP1500AVRT also has full dataline protection: RJ11/RJ45 (phone, fax, Ethernet, network, DSL) and RG-6 coax (DSS, cable modem, satellite, cable TV). The convenient tower design allows for placement on the floor, inside a workstation cabinet, or directly on the desktop. “Surge-Only” outlets are perfect for the addition of peripherals such as monitors, printers, scanners, iIPods, or CD/DVD players.

Runtimes:
> Entry-level     PC with 19" LCD (150W) - 31 minutes
> Midrange       PC with 19" LCD (300W) - 16 minutes
> Performance PC with 19" LCD (500W) -   9 minutes

Features & Benefits:
> Automatic Voltage Regulation (AVR) - Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance.
> EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
> Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
> USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
> PowerPanel PE ™ Smart Management Software – In event of a power outage, PowerPanel PE will not only save your open files and will also “Hibernate” your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPS’s status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
> LED Indicators - LED status lights indicate Power-On and wiring faults.
> Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery.
> Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
> ISO & Safety Certifications - All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.
> Windows Vista ™ Compliant - Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista.
> Identical Model #’s: CP1500AVRT, BC1500, BC1500D; CP1500D

Specifications:
General:
> UPS Type: Line-Interactive
Input:
> Voltage: 88Vac - 140Vac
> Frequency: 60Hz +/- 3 Hz
> Plug Type: NEMA 5-15P
> Plug Style: Right angle
> Cord Length: 6'
Output:
> VA: 1500
> Watts: 900
> On Battery Voltage: 120Vac +/- 5%
> On Battery Frequency: 60Hz
> On Battery Waveform: Simulated sine wave
> Battery / Surge Protection Outlets: 4
> Surge Protection Outlets: 4
> Transformer Spaced Outlets: 1
> Overload Protection: Internal circuitry limiting / circuit breaker
> Voltage Regulation: Yes
> Transfer Time: 4ms
Battery:
> Runtime at Half Load (min): 11
> Runtime at Full Load (min): 3
> Battery Type: Sealed lead acid
> User Replaceable: Yes
> Typical Recharge Time: 18 Hours
Surge Protection and Filtering:
> Surge Supression: 1080 Joules
> Maximum Surge Current: 36,000 Amps
> Phone / Ethernet RJ11 / RJ45: 1 in, 1 out combo
> Coax Protection: 1 in, 1 out
Management & Communications:
> USB Port: Yes
> USB HID Compliant UPS: Yes
> Serial Port: No
> Management Cable: USB cable
> LED Indicators: Power on, wiring fault, using battery, AVR, overload
> Audible Alarms: On battery, low battery, overload
> Software: PowerPanel Personal Edition
Physical:
> Dimensions (in): 13 1/2" x 3 7/8" x 9 3/4"
Environmental:
> Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
> Operating Humidity: 0% - 95% non condensing
Certifications:
> UL1778, cUL 107.1, FCC DOC Class B
