Cyber Power (
CyberPower ) UPS Battery Backup Systems
AVR (Automatic Voltage Regulator) built-in
Office

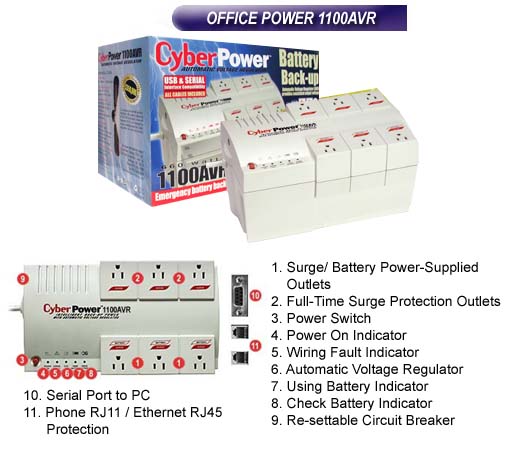

Power CP-1100AVR (CP1100AVR, CPS1100AVR)
1100VA,
660W, 1500-Joule, Runtime 40 ~ 82 Minutes
UPS-CP-AVR-1100
Features & Benefits
>
Battery Run-times from 40 to 82 minutes
> Compact
design with extended outlets to accommodate transformer block adapter
>
Automatic Voltage Regulation Controls over-voltages, blackouts and
brownouts
> All
outlets are surge-protected at 1500 joules
>
PowerPanel Plus™ Software saves your open files and automatically shuts
down your computer when power is lost
>
Contains two 7.2 AH Battery for extended Run-Times
Cyber Power™ Battery
Back-up Systems
CyberPower's
OfficePower™ 1100AVR Battery Back-up System not only guards
against surges and spikes, but will also step up low voltages or step down
high voltage conditions to safe output levels without resorting to battery
power. OfficePower 1100AVR also protects your computer system and valuable
data during a power outage.
PowerPanel Plus ™ Software
> Saves open files and
applications and automatically shuts down your computer when a power
outage occurs.
> Provides monitoring of
input voltage, output voltage, battery capacity, load and temperature.
> Allows for user-defined
scheduled shutdown and startup of computer system.
Technical Specification
> Model: CPS1100AVR
> VA Rating:
1100VA
> Watts: 660W
> Input Voltage on
Utility: 85v
to 150v
> Frequency on Utility:
57Hz to 63Hz
> Output Voltage on
Battery: 120V +/- 5%
> Frequency on Battery: 60 Hz
> Surge Energy Capacity: 1500 Joules
> Maximum Surge Current: 36,000 Amps
> Overload Protection:
Internal circuitry limiting. On-line circuit breaker
> Battery Run-time: 40
- 82 minutes
> Typical Battery
Recharge Time: 8
hours
> Total number of
receptacles: 3
battery / surge, 3 full time surge-only
> Visual Indicators:
Power On/Off, Automatic Voltage Regulator, Site Wiring Fault, Using
Battery
> Audible Indicators:
Battery on, Low battery, UPS overload
> Conformance Approvals: UL
1778, cUL, FCC Doc Class B
> Included Software:
PowerPanelPlus™ Power Management Software
> Communication Cables:
Includes both serial and USB communication cables
> Unit Dimensions: Length 10 7/8"
Width 6 3/8" Height 5 7/8" |
