Cyber Power ( CyberPower ) UPS Battery Backup Systems
AVR LCD Tower Series (Automatic Voltage Regulator) built-in

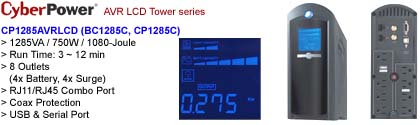

CP-1285AVRLCD (CP1285AVRLCD, CP1285C, BC1285C)
1285VA, 750W, 1080-Joule, Runtime 3~12 Minutes
UPS-CP-AVRLCD-1285

Overview:
The CyberPower Systems CP1285AVRLCD UPS, designed for mid to high-end computer systems, features dynamic line conditioning and an Intelligent LCD diagnostic display. Real-time system vitals can be viewed from this display and the unit can be conveniently mounted in a workstation cabinet or directly on the desktop. The CP1285AVRLCD also guards against surges/spikes, and also offers battery backup in the event of brownouts or total power loss. Automatic Voltage Regulation (AVR) ensures that all your electronics are receiving clean power and stabilizes the voltage to a nominal 120VAC. PowerPanel PE ™ Management Software automatically saves and closes open files and then shuts down the computer system in an intelligent and orderly manner. The CP series are also equipped with full dataline protection: RJ11/RJ45 (phone, fax, Ethernet, network, DSL) and RG-6 coax (DSS, cable modem, satellite, cable TV). “Surge-Only” outlets are perfect for the addition of peripherals such as monitors, printers, scanners, iPods, or CD/DVD players.

Features & Benefits:
> Intelligent LCD Diagnostic Display: The innovative front panel LCD can be used to display detailed information on the UPS status and current power conditions. The LCD displays 11 different diagnostics: Input voltage level, Output voltage level, Automatic voltage regulator, Battery capacity, Runtime estimate, Load level, Output frequency, On battery, Overload, Fault Condition, and Silent mode.
> Automatic Voltage Regulation (AVR) - Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance.
> EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
> Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets.
> USB Connectivity - HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
> PowerPanel PE ™ Smart Management Software – In event of a power outage, PowerPanel PE will not only save your open files and will also “Hibernate” your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPS’s status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
> LED Indicators - LED status lights indicate Power-On and wiring faults.
> Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery.
> Resettable Circuit Breaker - Convenient unit reset switch in case of an overload.
> ISO & Safety Certifications - All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. Our products are also certified by the FCC, cUL, and UL.
> Windows Vista ™ Compliant - Our Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista.
> Identical Model #’s: CP1285AVRLCD, BC1285C

Specifications:
General:
> UPS Type: Line-Interactive
Input:
> Voltage: 90Vac - 140Vac
> Frequency: 60Hz +/- 3 Hz
> Plug Type: NEMA 5-15P
> Plug Style: Right angle
> Cord Length: 6'
Output:
> VA: 1285
> Watts: 750
> On Battery Voltage: 120Vac +/- 5%
> On Battery Frequency: 60Hz
> On Battery Waveform: Simulated sine wave
> Battery / Surge Protection Outlets: 4
> Surge Protection Outlets: 4
> Transformer Spaced Outlets: 1
> Overload Protection: Internal circuitry limiting / circuit breaker
> Voltage Regulation: Yes
> Transfer Time: 4ms
Battery:
> Runtime at Half Load (min): 12
> Runtime at Full Load (min): 3
> Battery Type: Sealed lead acid
> User Replaceable: Yes
> Typical Recharge Time: 16 Hours
Surge Protection and Filtering:
> Surge Supression: 1080 Joules
> Maximum Surge Current: 36,000 Amps
> Phone / Ethernet RJ11 / RJ45: 1 in, 1 out combo
> Coax Protection: 1 in, 1 out
Management & Communications:
> USB Port: Yes
> USB HID Compliant UPS: Yes
> Serial Port: Yes
> Management Cable: USB cable
> LED Indicators: Power on, wiring fault
> Audible Alarms: On battery, low battery, overload
> Software: PowerPanel Personal Edition
> LCD Display: Yes
Physical:
> Dimensions (in): 13 1/2" x 3 7/8" x 9 3/4"
Environmental:
> Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
> Operating Humidity: 0% - 95% non condensing
Certifications:
> UL1778, cUL 107.1, FCC DOC Class B
