American Power Conversion Battery Backup Systems

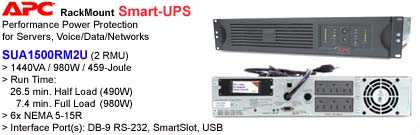

APC RackMount Smart-UPS SUA1500RM2U
1440VA, 980W, 459-Joule, Runtime 7.4~26.5 Minutes

Package Includes:
> CD with software
> Rack Mounting Brackets
> Rack Mounting support rails
> Smart UPS singalling RS-232 cable
> USB cable
> User Manual

Output:
> Output Power Capacity: 980 Watts / 1440 VA
> Max Configurable Power: 980 Watts / 1440 VA
> Nominal Output Voltage: 120V
> Output Voltage Distortion: Less than 5% at full load
> Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
> Crest Factor: up to 5 : 1
> Waveform Type: Sine wave
> Output Connections: (6) NEMA 5-15R

Input:
> Nominal Input Voltage: 120V
> Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
> Input Connections: NEMA 5-15P
> Cord Length: 8 feet (2.44 meters)
> Input Voltage Range for Main Operation: 82 - 144V
> Input voltage adjustable range for mains operation: 75 - 154V

Batteries & Runtime:
> Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproff
> Typical recharge time: 3 hour(s)
> Replacement battery cartridge: CURK24, RBC24
> RBC™ Quantity: 1
> Typical Backup Time
   at Half Load: 26.5 minutes (490 Watts)
   at Full Load:  7.4 minutes (980 Watts)

Communications & Management:
> Interface Port(s): DB-9 RS-232, SmartSlot, USB
> Available SmartSlot™ Interface Quantity: 1
> Control Panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
> Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
> Emergency Power Off (EPO): Optional

Surge Protection and Filtering:
> Surge energy rating: 459 Joules
> Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:
> Maximum Height: 3.50 inches (89 mm)
> Maximum Width: 17.00 inches (432 mm)
> Maximum depth: 18.00 inches (457 mm)
> Rack Height: 2U
> Net Weight: 63.00 lbs (28.64 kg)
> Shipping Weight: 70.20 lbs (31.91 kg)
> Shipping Height: 9.88 inches (251 mm)
> Shipping Width: 23.38 inches (594 mm)
> Shipping Depth: 23.75 inches (603 mm)
> Color: Black
> Units per Pallet: 16.00

Environmental:
> Operating Environment: 32 - 104 °F (0 - 40 °C)
> Operating Relative Humidity: 0 - 95%
> Operating Elevation: 0 - 10000 feet (0 - 3000 meters)
> Storage Temperature: 5 - 113 °F (-15 - 45 °C)
> Storage Relative Humidity: 0- 95%
> Storage Elevation: 0 - 50000 feet (0 - 15000 meters)
> Audible noise at 1 meter from surface of unit: 45 dBA
> Online Thermal Dissipation: 171.00 BTU/hr

Conformance:
> Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778

* Except where noted, all prices are Estimated Resale Price (ERP) - Without Tax/VAT. Pricing in other locations and sites may vary.
** The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
