American Power Conversion Battery Backup Systems

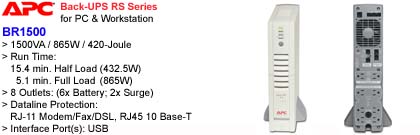

APC Back-UPS RS 1500 ( Part Number : BR1500 )
1500VA, 865W, 420-Joule, Runtime 5.1~15.4 Minutes

Package Includes:
> CD with software
> Cord management straps
> Free trial of anti-virus : firewall : email privacy : system recovery and online backup software
> USB cable
> User Manual

Output:
> Output Power Capacity: 865 Watts / 1500 VA
> Max Configurable Power: 865 Watts / 1500 VA
> Nominal Output Voltage: 120V
   (6) NEMA 5-15R (Battery Backup)
   (2) NEMA 5-15R (Surge Protection)

Input:
> Nominal Input Voltage: 120V
> Input Frequency: 47 - 63 Hz
> Input Connections: NEMA 5-15P
> Cord Length: 6 feet (1.83 meters)
> Input Voltage Range for Main Operation: 88 ~ 148V
> Input voltage adjustable range for mains operation: 78 - 152V

Batteries & Runtime:
> Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproff
> Included Battery Modules: 1
> Typical recharge time: 8 hour(s)
> Replacement battery cartridge: RBC33
> RBC™ Quantity: 1
> Typical Backup Time
   at Half Load: 15.4 minutes (432.5 Watts)
   at Full Load:    5.1 minutes (865 Watts)

Communications & Management:
> Interface Port(s): USB
> Control Panel: LED Status display with On Line: On Battery: Replace Battery and Overload Indicators
> Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering:
> Surge energy rating: 420 Joules
> Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
> Dataline protection: RJ-11 Modem/Fax/DSL protection (two wire single line),RJ45 10 Base-T Ethernet protection

Physical:
> Maximum Height: 14.60 inches (371 mm)
> Maximum Width: 3.40 inches (86 mm)
> Maximum depth: 13.10 inches (333 mm)
> Rack Height: 2U
> Net Weight: 25.00 lbs (11.36 kg)
> Shipping Weight: 26.00 lbs (11.82 kg)
> Shipping Height: 17.90 inches (455 mm)
> Shipping Width: 8.00 inches (203 mm)
> Shipping Depth: 16.40 inches (417 mm)
> Color: Beige
> SCC Codes: 1073130419314 9
> Units Per Pallet: 36.00

Environmental:
> Operating Environment: 32 - 104 °F (0 - 40 °C)
> Operating Relative Humidity: 0 - 95%
> Operating Elevation: 0 - 10000 feet (0 - 3000 meters)
> Storage Temperature: 23 - 113 °F (-5 - 45 °C)
> Storage Relative Humidity: 0- 95%
> Storage Elevation: 0 - 50000 feet (0 - 15000 meters)
> Audible noise at 1 meter from surface of unit: 45 dBA
> Online Thermal Dissipation: 180.00 BTU/hr

Conformance:
> Regulatory Approvals: cUL Listed,FCC Part 15 Class B,FCC Part 68,UL 1449,UL 1778,UL Listed

* Except where noted, all prices are Estimated Resale Price (ERP) - Without Tax/VAT. Pricing in other locations and sites may vary.
** The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
