American Power Conversion Battery Backup Systems

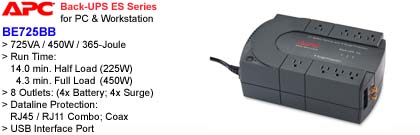

APC Back-UPS ES 725 ( Part Number : BE725BB )
725VA, 450W, 365-Joule, Runtime 4.3~14.0 Minutes

Package Includes:
> CD with software
> Cord management straps
> Free trial of anti-virus : firewall : email privacy : system recovery and online backup software
> Free trial software
> Installation guide
> USB cable
> User Manual

Output:
> Output Power Capacity: 450 Watts / 725 VA
> Max Configurable Power: 450 Watts / 725 VA
> Nominal Output Voltage: 120V
> Output Connections:
   (4) NEMA 5-15R (Battery Backup)
   (4) NEMA 5-15R (Surge Protection)

Input:
> Nominal Input Voltage: 120V
> Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
> Input Connections: NEMA 5-15P
> Cord Length: 6 feet (1.83 meters)
> Input Voltage Range for Main Operation: 98 ~ 132V

Batteries & Runtime:
> Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproff
> Typical recharge time: 16 hour(s)
> Replacement battery cartridge: RBC17
> RBC™ Quantity: 1
> Typical Backup Time
   at Half Load: 14.0 minutes (225 Watts)
   at Full Load:  4.3 minutes (450 Watts)

Communications & Management:
> Interface Port(s): USB
> Control Panel: LED Status display with On Line: On Battery
> Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering:
> Surge energy rating: 365 Joules
> Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
> Dataline protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection, Co-axial Video / Cable protection

Physical:
> Maximum Height: 4.00 inches (102 mm)
> Maximum Width: 11.00 inches (279 mm)
> Maximum depth: 7.10 inches (180 mm)
> Net Weight: 16.20 lbs (7.36 kg)
> Shipping Weight: 17.60 lbs (8.00 kg)
> Shipping Height: 7.50 inches (191 mm)
> Shipping Width: 13.90 inches (353 mm)
> Shipping Depth: 10.10 inches (257 mm)
> Master Carton Units: 2.00
> Color: Charcoal
> Units per Pallet: 80.00

Environmental:
> Operating Environment: 32 - 104 °F (0 - 40 °C)
> Operating Relative Humidity: 0 - 95%
> Operating Elevation: 0 - 10000 feet (0 - 4500 meters)
> Storage Temperature: 5 - 113 °F (-15 - 45 °C)
> Storage Relative Humidity: 0 - 95%
> Storage Elevation: 0 - 10000 feet (0 - 4500 meters)

Conformance:
> Regulatory Approvals: cUL Listed,FCC Part 15 Class B,FCC Part 68,UL 1778,UL Listed

**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
